| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

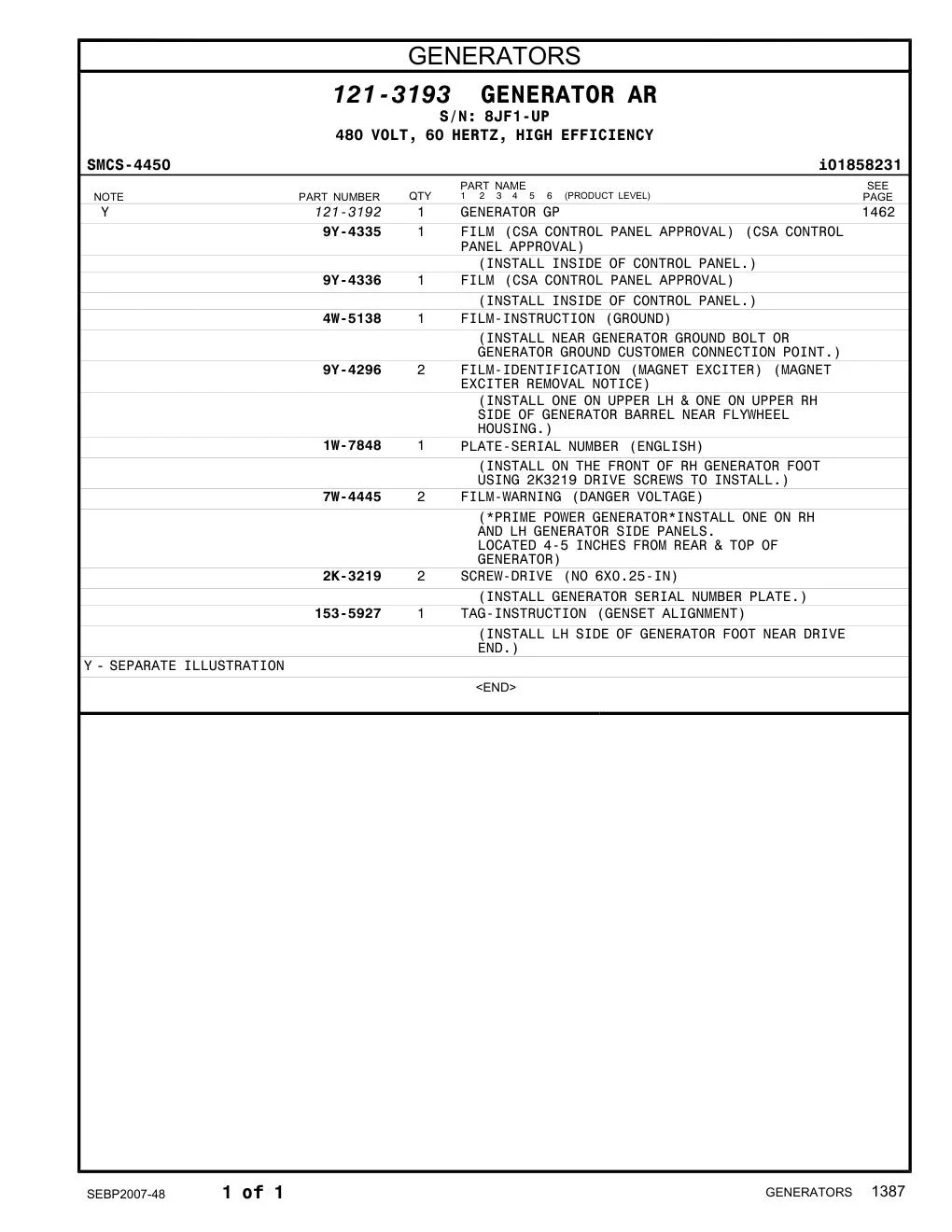

| 121-3192 |
GENERATOR GP
|
1 | 1433 |
| 9Y-4335 |
FILM (CSA CONTROL PANEL APPROVAL) (CSA CONTROL PANEL APPROVAL) (INSTALL INSIDE OF CONTROL PANEL.)
|
1 | 1433 |
| 9Y-4336 |
FILM (CSA CONTROL PANEL APPROVAL) (INSTALL INSIDE OF CONTROL PANEL.)
|
1 | 1433 |
| 4W-5138 |
FILM-INSTRUCTION (GROUND) (INSTALL NEAR GENERATOR GROUND BOLT OR GENERATOR GROUND CUSTOMER CONNECTION POINT.)
|
1 | 1433 |
| 1W-7848 |
PLATE-SERIAL NUMBER (ENGLISH) (INSTALL ON THE FRONT OF RH GENERATOR FOOT USING 2K3219 DRIVE SCREWS TO INSTALL.)
|
1 | 1433 |
| 7W-4445 |
FILM-WARNING (DANGER VOLTAGE) (*PRIME POWER GENERATOR*INSTALL ONE ON RH AND LH GENERATOR SIDE PANELS. LOCATED 4-5 INCHES FROM REAR & TOP OF GENERATOR)
|
2 | 1433 |
| 2K-3219 |
SCREW-DRIVE (NO 6X0.25-IN) (INSTALL GENERATOR SERIAL NUMBER PLATE.)
|
2 | 1433 |
| 153-5927 |
TAG-INSTRUCTION (GENSET ALIGNMENT) (INSTALL LH SIDE OF GENERATOR FOOT NEAR DRIVE END.)
|
1 | 1433 |
| 4P-3154 |
HEAT SINK
|
1 | 1508 |
| 110-6174 |
PANEL-REAR
|
1 | 1508 |
| 4P-3153 |
SPACER (20.6X77X27.8-MM THK)
|
1 | 1508 |
| 1A-9579 |
BOLT (5/16-18X1.5-IN)
|
4 | 1508 |
| 4P-3152 |
ROTOR-EXCITER
|
1 | 1508 |
| 9Y-0916 |
RECTIFIER AS
|
1 | 1508 |
| 9Y-5816 |
STATOR-EXCITER
|
1 | 1508 |
| 3H-5932 |
BOLT (5/16-18X4.5-IN)
|
4 | 1508 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK)
|
8 | 1508 |
| 6I-0088 |
COVER AS-EXCITER
|
1 | 1508 |
| 1B-2714 |
BOLT (1/4-20X2.5-IN)
|
4 | 1508 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
19 | 1508 |
| 111-2413 |
FAN-GENERATOR
|
1 | 1508 |
| 110-6175 |
COVER AS-AIR (INLET)
|
1 | 1508 |
| 110-4325 |
BRACKET-BEARING
|
1 | 1508 |
| 9S-8750 |
NUT-FULL (1/4-20-THD)
|
3 | 1508 |
| 0S-1615 |
BOLT (1/4-20X0.75-IN)
|
8 | 1508 |
| 8T-6764 |
PLUG-PIPE (1/8-27-THD)
|
2 | 1508 |
| 110-3410 |
ROTOR AS
|
1 | 1508 |
| 7E-6577 |
COVER-RECTIFIER
|
1 | 1508 |
| 7C-5709 |
SLEEVE
|
3 | 1508 |
| 7C-5708 |
GROMMET
|
3 | 1508 |
| 033-2075 |
WASHER (0.266X1.25X0.06-IN THK)
|
6 | 1508 |
| 1N-7219 |
CHANNEL-RUBBER
|
1 | 1508 |
| 7E-6578 |
PANEL
|
2 | 1508 |
| 4W-9449 |
FILM-INFORMATION (GENERATOR WIRING DIAGRAM)
|
1 | 1508 |
| 7C-5711 |
FILM-INSTRUCTION (VOLTAGE CONTROL ADJUSTMENT)
|
1 | 1508 |
| 128-5313 |
PANEL AS
|
1 | 1508 |
| 4F-8711 |
PLUG-BUTTON
|
2 | 1508 |
| 5N-3174 |
PLUG-BUTTON
|
8 | 1508 |
| 5N-3175 |
PLUG-BUTTON
|
1 | 1508 |
| 6K-9593 |
PLUG-BUTTON
|
5 | 1508 |
| 3V-5035 |
SPACER (0.302X0.54X1.03-IN THK)
|
1 | 1508 |
| 4P-3420 |
BRACKET (RH)
|
1 | 1508 |
| 7E-6568 |
FRAME AS (RH)
|
1 | 1508 |
| 4P-3419 |
BRACKET (LH)
|
1 | 1508 |
| 112-2563 |
SCREEN AS
|
2 | 1508 |
| 7E-6567 |
FRAME AS (LH)
|
1 | 1508 |
| 9F-7022 |
BOLT (1/4-20X1.5-IN)
|
1 | 1508 |
| 110-4875 |
STATOR AS (PERMANENT MAGNET)
|
1 | 1508 |
| 7E-8266 |
HOLDER AS-FUSE
|
2 | 1508 |
| 9Y-6027 |
FUSE-CERAMIC (10-AMPERE)
|
2 | 1508 |
