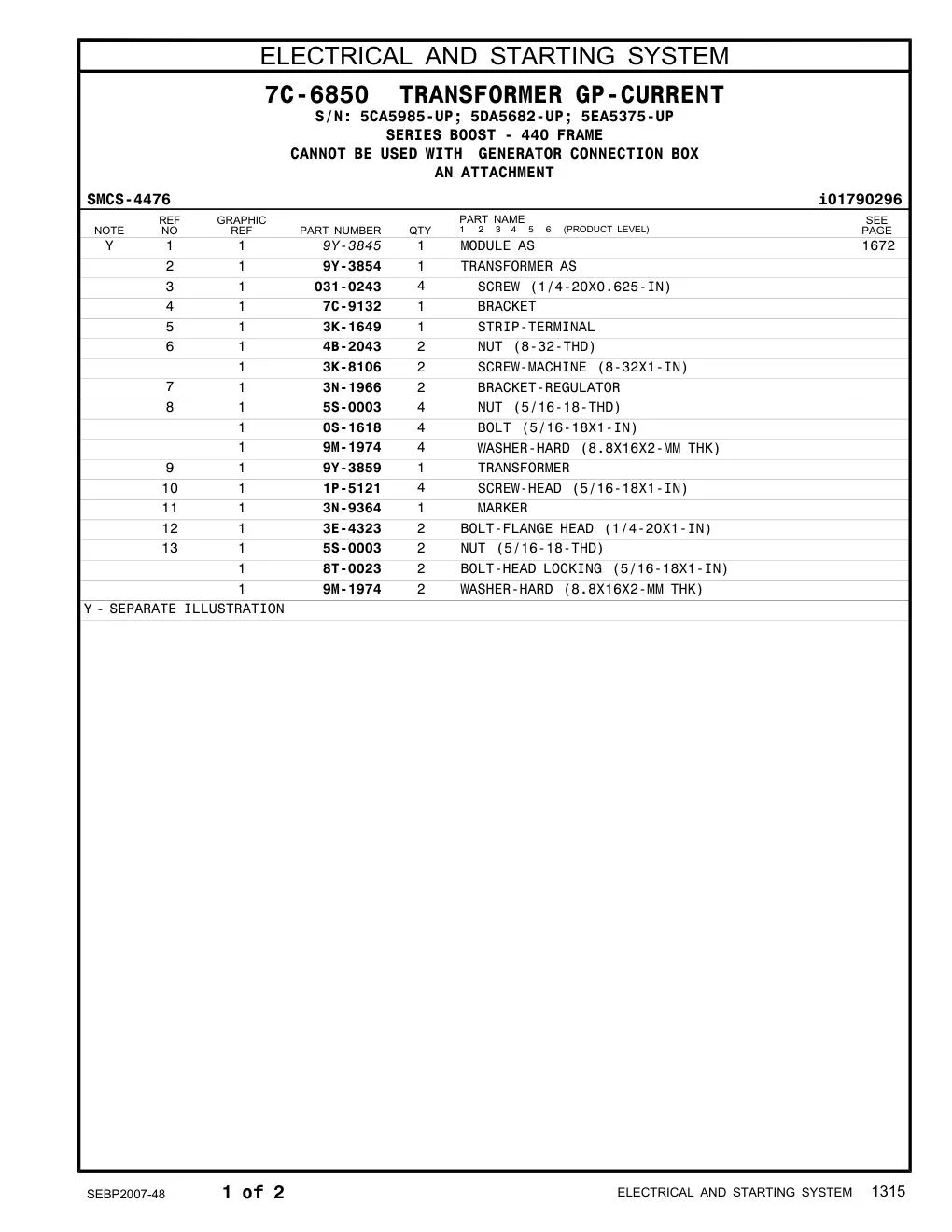

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 9Y-3845 |
MODULE AS
|
1 | 1361 |
| 031-0243 |
SCREW (1/4-20X0.625-IN)
螺钉 |
4 | 1361 |
| 7C-9132 |
BRACKET
支架 |
1 | 1361 |
| 3K-1649 |
STRIP-TERMINAL
|
1 | 1361 |
| 4B-2043 |
NUT (8-32-THD)
调速螺母 |
2 | 1361 |
| 3K-8106 |
SCREW-MACHINE (8-32X1-IN)
机器螺钉 |
2 | 1361 |
| 3N-1966 |
BRACKET-REGULATOR
|
2 | 1361 |
| 5S-0003 |
NUT (5/16-18-THD)
调速螺母 |
4 | 1361 |
| 0S-1618 |
BOLT (5/16-18X1-IN)
螺栓 |
4 | 1361 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK)
硬垫圈 |
4 | 1361 |
| 9Y-3859 |
TRANSFORMER
|
1 | 1361 |
| 1P-5121 |
SCREW-HEAD (5/16-18X1-IN)
|
4 | 1361 |
| 3N-9364 |
MARKER
|
1 | 1361 |
| 3E-4323 |
BOLT-FLANGE HEAD (1/4-20X1-IN)
法兰头螺栓 |
2 | 1361 |
| 8T-0023 |
BOLT-HEAD LOCKING (5/16-18X1-IN)
|
2 | 1361 |
