| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 122-4638 |
BRACKET AS
|
1 | 1345 |
| 7B-2742 |
BOLT (1/4-20X1.25-IN)
|
4 | 1345 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
4 | 1345 |
| 7C-0100 |
MOUNT-FLEXIBLE
|
3 | 1345 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK)
|
6 | 1345 |
| 5S-0003 |
NUT (5/16-18-THD)
|
3 | 1345 |
| 9W-1077 |
SWITCH GP-START (ENGINE)
|
1 | 1345 |
| 8J-4785 |
PLATE-INSTRUCTION (START SWITCH) (ENGINE)
|
1 | 1345 |
| 122-4637 |
BRACKET
|
1 | 1345 |
| 7W-6603 |
BRACKET
|
1 | 1346 |
| 8J-4785 |
PLATE-INSTRUCTION (START SWITCH) (HEAT START)
|
1 | 1346 |
| 8B-2377 |
BOLT (1/4-20X2-IN)
|
1 | 1346 |
| 4F-7957 |
BOLT (1/4-20X0.875-IN)
|
1 | 1346 |
| 9S-8750 |
NUT-FULL (1/4-20-THD)
|
1 | 1346 |
| 9W-1077 |
SWITCH GP-START (HEAT)
|
1 | 1346 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
2 | 1346 |

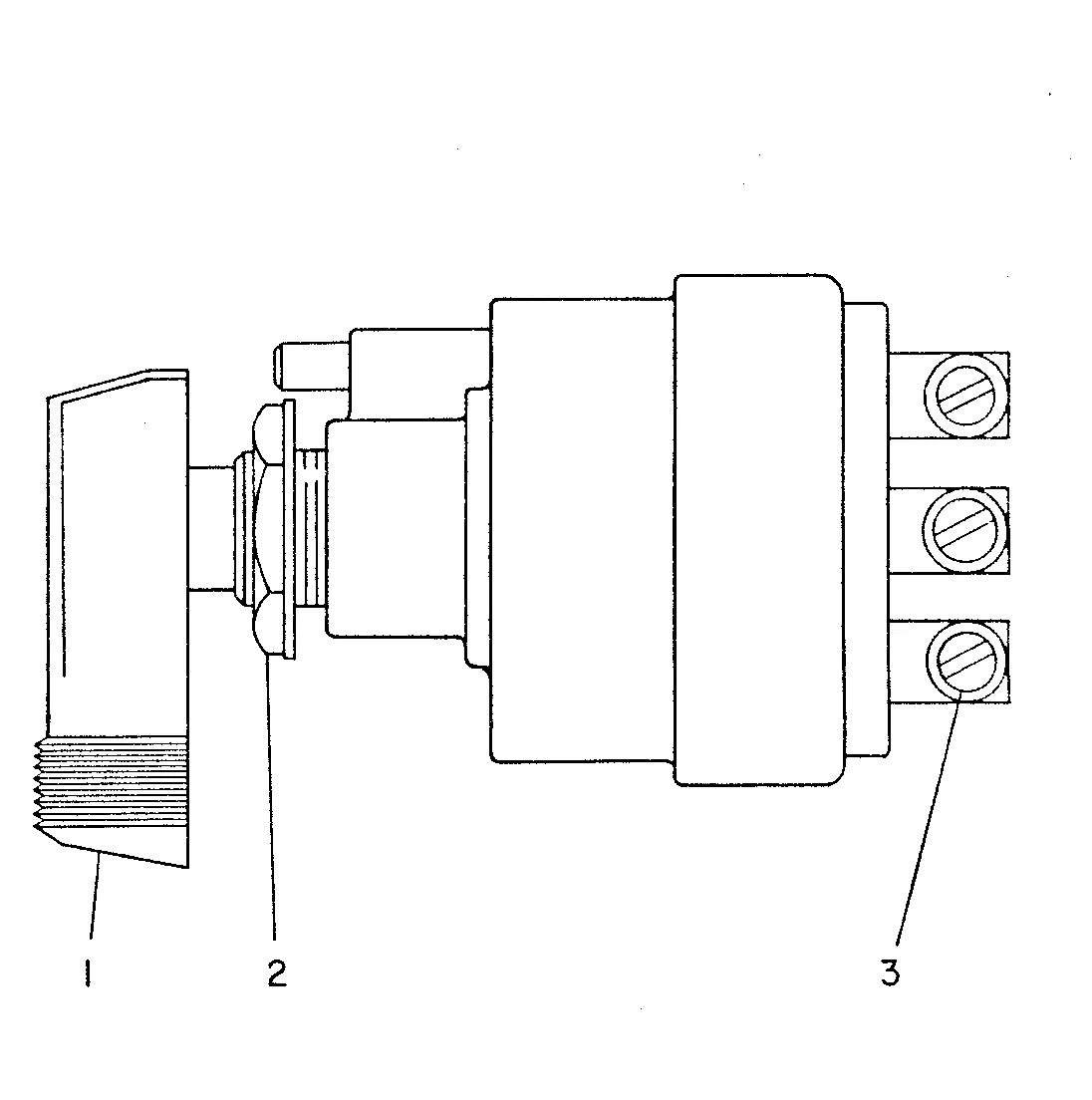

| 8F-3437 |
LEVER-SWITCH (START)
|
1 | 1347 |
| 5L-7200 |
SCREW (8-32X0.375-IN)
|
1 | 1347 |
| 3B-4501 |
LOCKWASHER
|
1 | 1347 |
| 8C-6808 |
NUT (5/8-32-THD)
|
1 | 1347 |
| 7M-0327 |
WASHER-THRUST (17.4X25.4X1.6-MM THK)
|
1 | 1347 |
| 6V-8364 |
SCREW-MACHINE (10-32X9.52-MM)
|
4 | 1347 |
| 8F-1434 |
LOCKWASHER
|
4 | 1347 |
| 5P-5623 |
WIRE-ELECTRICAL (16-GA, BLACK)
|
1 | 1348 |
| 5P-1475 |
TERMINAL-FORK (14-GA TO 16-GA, NO. 8 SCREW)
|
4 | 1348 |
| 9G-9151 |
CLIP
|
1 | 1348 |
| 9D-3721 |
SWITCH-TOGGLE (SINGLE POLE) (ETHER AID ON-OFF)
|
1 | 1348 |
| 5N-0361 |
GUARD
|
1 | 1348 |
| 9G-4365 |
VALVE AS-ETHER START (24-VOLT)
|
1 | 1348 |
| 7N-9737 |
HOUSING-RECEPTACLE (14-GA TO 18-GA)
|
1 | 1348 |
| 7N-7779 |
SOCKET-CONNECTOR (14-GA TO 18-GA)
|
1 | 1348 |
| 7N-7780 |
PIN-CONNECTOR (14-GA TO 18-GA)
|
1 | 1348 |
| 7N-9801 |
GASKET
|
1 | 1348 |
| 1S-9593 |
STRAP-CABLE
|
10 | 1348 |
| 6V-8376 |
SCREW-MACHINE (8-32X0.25-IN)
|
2 | 1348 |
| 9B-7233 |
LOCKWASHER
|
2 | 1348 |
| 7N-0296 |
CYLINDER AS-ETHER (MUST BE PROCURED LOCALLY FROM YOUR CATERPILLAR DEALER)
|
1 | 1348 |
