| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 107-4437 |
BASE AS
|
1 | 1385 |
| 9F-2978 |
NUT-WELD (3/8-16-THD)
|
1 | 1385 |
| 9W-9930 |
MOUNT AS
|
4 | 1385 |
| 9B-7237 |
BOLT (3/8-16X1.25-IN)
|
2 | 1385 |
| 8T-4896 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
2 | 1385 |
| 9W-6584 |
WASHER (20.5X114X10-MM THK)
|
4 | 1385 |
| 034-3665 |
STRAP-GROUNDING
|
1 | 1385 |
| 1D-4614 |
BOLT (3/4-10X5-IN)
|
4 | 1385 |
| 2J-3506 |
NUT-FULL (3/4-10-THD)
|
4 | 1385 |
| 5P-8248 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
8 | 1385 |
| 9W-6582 |
SLEEVE
|
1 | 1385 |
| 107-8203 |
SUPPORT AS
|
1 | 1385 |
| 9F-2978 |
NUT-WELD (3/8-16-THD)
|
5 | 1385 |
| 0S-1588 |
BOLT (3/8-16X1.25-IN)
|
5 | 1385 |
| 9X-6458 |
WASHER-HARD (10.2X22.5X3-MM THK)
|
5 | 1385 |
| 3N-7449 |

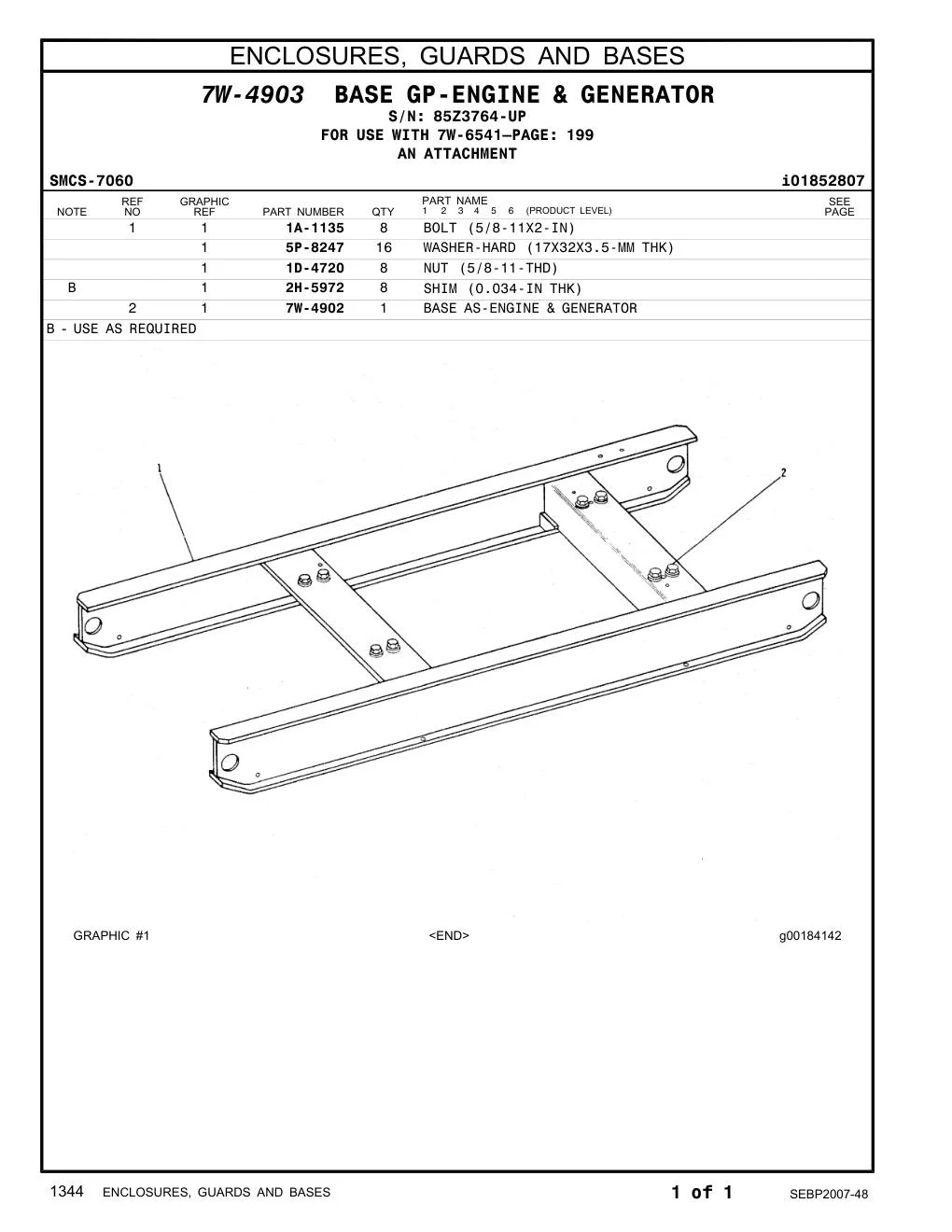

BASE AS-ENGINE & GENERATOR
|
1 | 1387 |
| 1A-1135 |
BOLT (5/8-11X2-IN)
|
8 | 1387 |
| 1D-4720 |
NUT (5/8-11-THD)
|
8 | 1387 |
| 5P-8247 |
WASHER-HARD (17X32X3.5-MM THK)
|
16 | 1387 |
| 4P-1979 |
BASE AS (EACH INCLUDES)
|
2 | 1388 |
| 1F-0748 |
NUT-WELD (1/2-13-THD)
|
10 | 1388 |
| 9F-2978 |
NUT-WELD (3/8-16-THD)
|
1 | 1388 |
| 4P-1978 |
BRACKET AS
|
2 | 1388 |
| 0S-1585 |
BOLT (1/2-13X1.5-IN)
|
8 | 1388 |
| 5P-8245 |
WASHER-HARD (13.5X25.5X3-MM THK)
|
16 | 1388 |
| 4P-1977 |
PLATE
|
2 | 1388 |
| 1A-1460 |
BOLT (1/2-13X2-IN)
|
8 | 1388 |
| 9W-9930 |
MOUNT AS
|
4 | 1388 |
| 9W-6584 |
WASHER (20.5X114X10-MM THK)
|
4 | 1388 |
| 9W-6582 |
SLEEVE
|
4 | 1388 |
| 1D-4614 |
BOLT (3/4-10X5-IN)
|
2 | 1388 |
| 5P-8248 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
8 | 1388 |
| 2J-3506 |
NUT-FULL (3/4-10-THD)
|
4 | 1388 |
| 8T-4896 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
|
2 | 1388 |
| 9B-7237 |
BOLT (3/8-16X1.25-IN)
|
2 | 1388 |
| 034-3665 |
STRAP-GROUNDING
|
1 | 1388 |
| 6K-1330 |
BOLT (3/4-10X5.75-IN)
|
2 | 1388 |
| 1A-1135 |
BOLT (5/8-11X2-IN)
|
8 | 1390 |
| 5P-8247 |
WASHER-HARD (17X32X3.5-MM THK)
|
16 | 1390 |
| 1D-4720 |
NUT (5/8-11-THD)
|
8 | 1390 |
| 2H-5972 |
SHIM (0.034-IN THK)
|
8 | 1390 |
| 9Y-5759 |
BASE AS
|
1 | 1391 |
| 9F-2978 |
NUT-WELD (3/8-16-THD)
|
2 | 1391 |
| 8J-7236 |
NUT-WELD (3/4-10-THD)
|
8 | 1391 |
| 9W-9930 |
MOUNT AS
|
4 | 1391 |
| 9W-6582 |
SLEEVE
|
4 | 1391 |
| 9W-6584 |
WASHER (20.5X114X10-MM THK)
|
4 | 1391 |
| 1D-4614 |
BOLT (3/4-10X5-IN)
|
4 | 1391 |
| 5P-8248 |
WASHER-HARD (20X36.5X3.5-MM THK)
|
8 | 1391 |
| 2J-3506 |
NUT-FULL (3/4-10-THD)
|
4 | 1391 |
