| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|

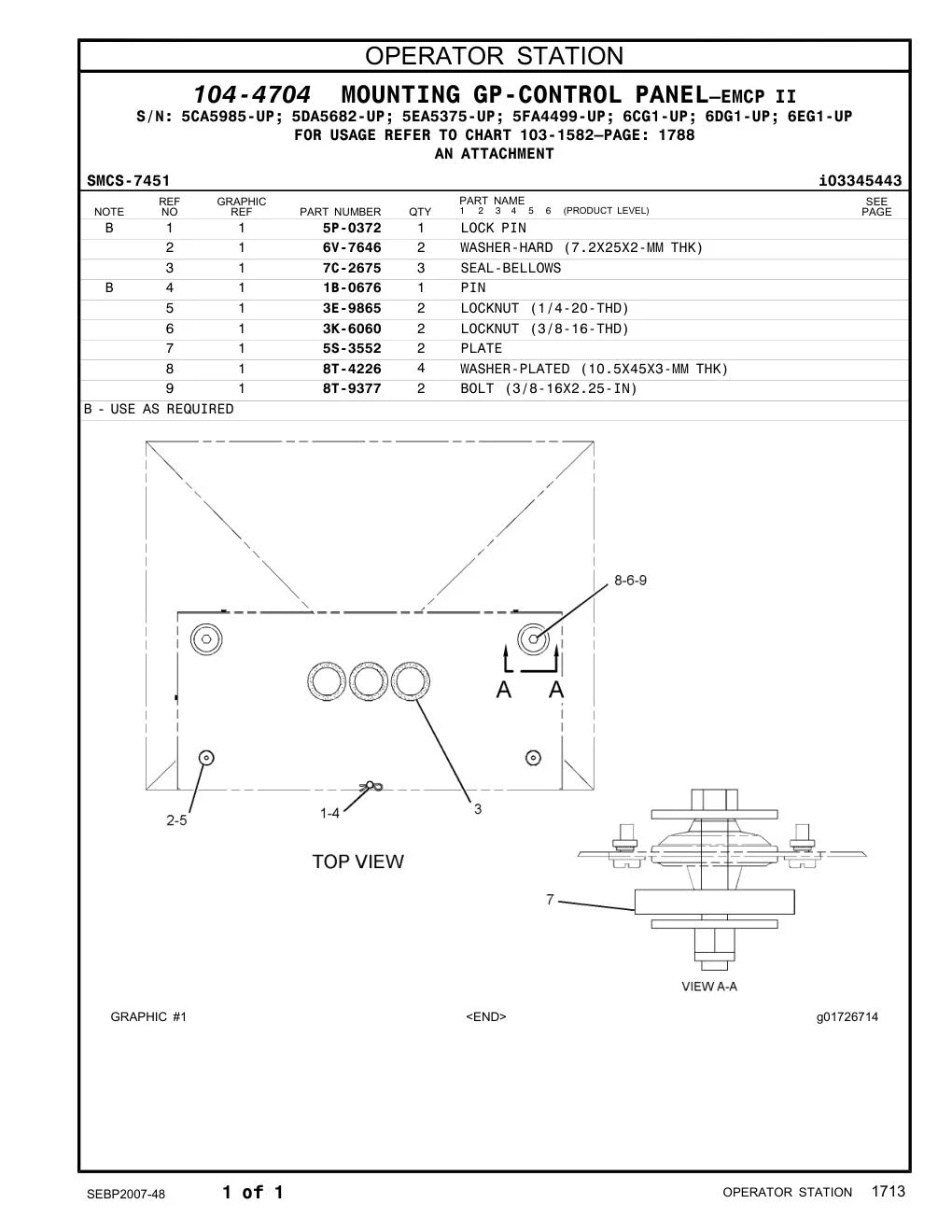

| 5P-0372 |
LOCK PIN
|
1 | 1759 |
| 6V-7646 |
WASHER-HARD (7.2X25X2-MM THK)
|
2 | 1759 |
| 7C-2675 |
SEAL-BELLOWS
|
3 | 1759 |
| 1B-0676 |
PIN
|
1 | 1759 |
| 3E-9865 |
LOCKNUT (1/4-20-THD)
|
2 | 1759 |
| 5S-3552 |
PLATE
|
2 | 1759 |
| 8T-4226 |
WASHER-PLATED (10.5X45X3-MM THK)
|
4 | 1759 |
| 8T-9377 |
BOLT (3/8-16X2.25-IN)
|
2 | 1759 |
| 7X-3186 |
BOLT (3/8-16X2.125-IN)
|
2 | 1760 |
| 6V-8801 |
NUT (3/8-16-THD)
|
2 | 1760 |
| 8T-4205 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
2 | 1760 |
| 3E-9865 |
LOCKNUT (1/4-20-THD)
|
2 | 1760 |
| 7C-2675 |
SEAL-BELLOWS
|
2 | 1760 |
| 1B-0676 |
PIN
|
1 | 1760 |
| 5P-0372 |
LOCK PIN
|
1 | 1760 |
| 7X-3178 |
BOLT (1/4-20X1.625-IN)
|
4 | 1761 |
| 1H-3338 |
LOCKWASHER
|
4 | 1761 |
| 6V-8185 |
NUT (1/4-20-THD)
|
4 | 1761 |
| 7C-2675 |
SEAL-BELLOWS
|
1 | 1761 |
| 8T-4205 |
WASHER-HARD (7.2X14.5X2-MM THK)
|
12 | 1761 |
