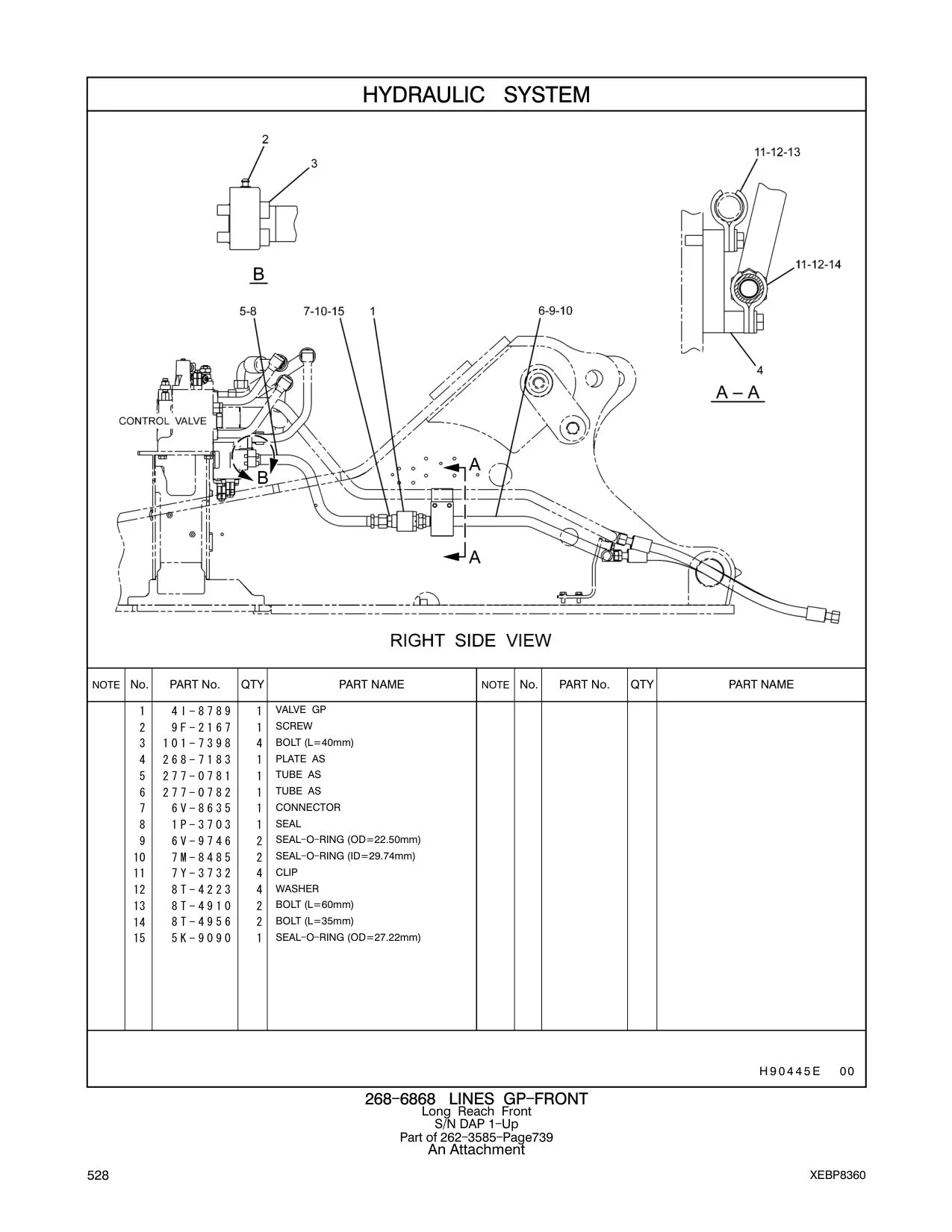

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 4I-8789 |
VALVE GP
阀总成 |
1 | 541 |
| 9F-2167 |
SCREW
自攻螺钉 |
1 | 541 |
| 101-7398 |
BOLT (L=40mm)
螺栓 |
4 | 541 |
| 268-7183 |
PLATE AS
板组件 |
1 | 541 |
| 277-0782 |
TUBE AS
右管子组件 |
1 | 541 |
| 6V-8635 |
CONNECTOR
接头 |
1 | 541 |
| 1P-3703 |
SEAL
O 形密封圈 |
1 | 541 |
| 6V-9746 |
SEAL-O-RING (OD=22.50mm)
O 形密封圈 |
2 | 541 |
| 7M-8485 |
SEAL-O-RING (ID=29.74mm)
O 形密封圈 |
2 | 541 |
| 7Y-3732 |
CLIP
卡箍 |
4 | 541 |
| 8T-4223 |
WASHER
卡箍板 |
4 | 541 |
| 8T-4910 |
BOLT (L=60mm)
螺栓 |
2 | 541 |
| 8T-4956 |
BOLT (L=35mm)
螺栓 |
2 | 541 |
| 5K-9090 |
SEAL-O-RING (OD=27.22mm)
O 形密封圈 |
1 | 541 |
