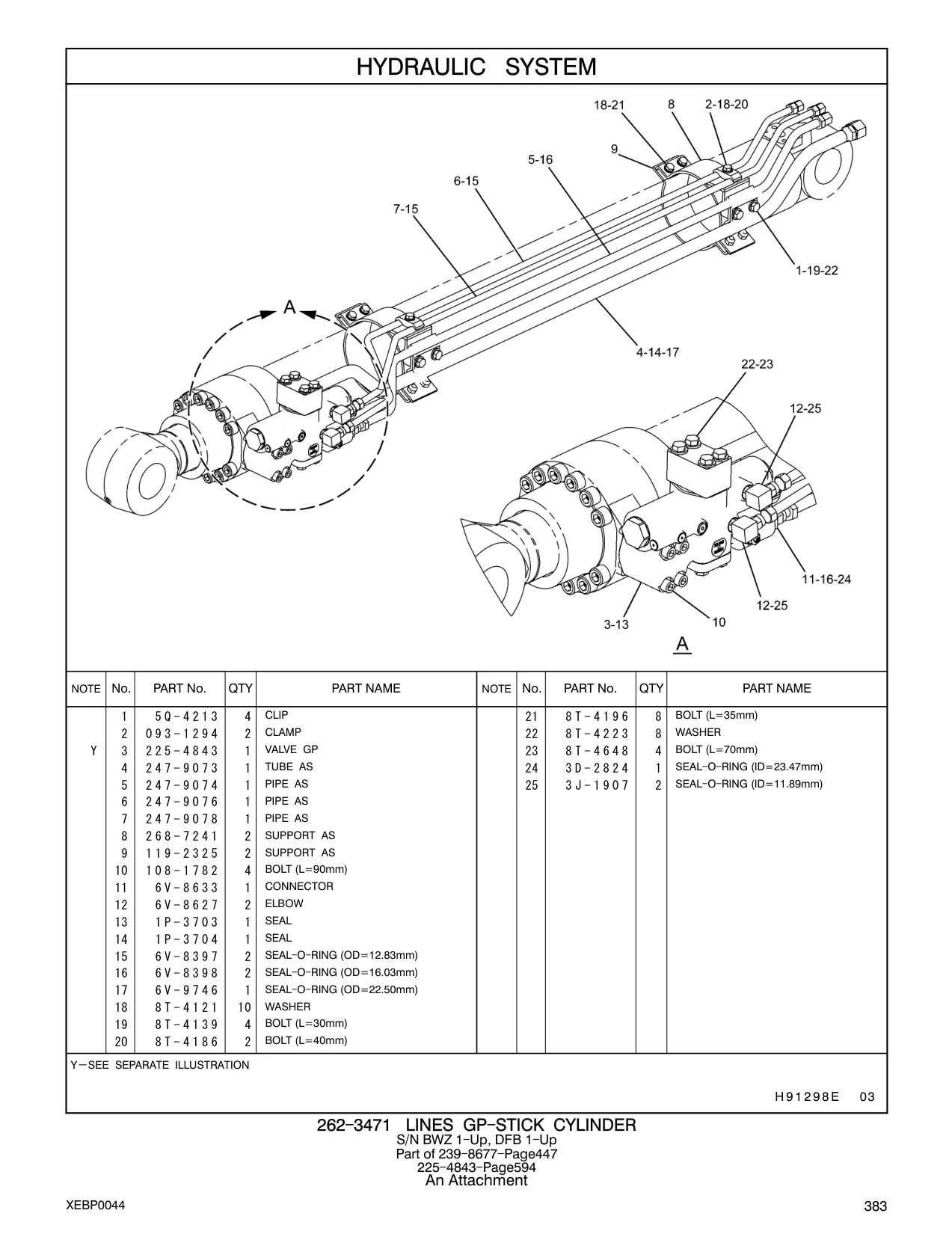

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 8T-4196 |
BOLT (L=35mm)
|
8 | 417 |
| 093-1294 |
CLAMP
|
2 | 417 |
| 8T-4223 |
WASHER
|
8 | 417 |
| 225-4843 |
VALVE GP
|
1 | 417 |
| 8T-4648 |
BOLT (L=70mm)
|
4 | 417 |
| 247-9073 |
TUBE AS
|
1 | 417 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm)
|
1 | 417 |
| 247-9074 |
PIPE AS
|
1 | 417 |
| 247-9076 |
PIPE AS
|
1 | 417 |
| 247-9078 |
PIPE AS
|
1 | 417 |
| 268-7241 |
SUPPORT AS
|
2 | 417 |
| 119-2325 |
SUPPORT AS
|
2 | 417 |
| 108-1782 |
BOLT (L=90mm)
|
4 | 417 |
| 6V-8633 |
CONNECTOR
|
1 | 417 |
| 6V-8627 |
ELBOW
|
2 | 417 |
| 1P-3703 |
SEAL
|
1 | 417 |
| 1P-3704 |
SEAL
|
1 | 417 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
2 | 417 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
2 | 417 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
1 | 417 |
| 8T-4121 |
WASHER
|
10 | 417 |
| 8T-4139 |
BOLT (L=30mm)
|
4 | 417 |
| 8T-4186 |
BOLT (L=40mm)
|
2 | 417 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm) H 9 1 2 9 8 E 03
|
2 | 417 |
| 8T-4196 |
BOLT (L=35mm)
|
8 | 471 |
| 093-1294 |
CLAMP
|
2 | 471 |
| 8T-4223 |
WASHER
|
8 | 471 |
| 225-4843 |
VALVE GP
|
1 | 471 |
| 8T-4648 |
BOLT (L=70mm)
|
4 | 471 |
| 247-9073 |
TUBE AS
|
1 | 471 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm)
|
1 | 471 |
| 247-9074 |
PIPE AS
|
1 | 471 |
| 247-9076 |
PIPE AS
|
1 | 471 |
| 247-9078 |
PIPE AS
|
1 | 471 |
| 268-7241 |
SUPPORT AS
|
2 | 471 |
| 119-2325 |
SUPPORT AS
|
2 | 471 |
| 108-1782 |
BOLT (L=90mm)
|
4 | 471 |
| 6V-8633 |
CONNECTOR
|
1 | 471 |
| 6V-8627 |
ELBOW
|
2 | 471 |
| 1P-3703 |
SEAL
|
1 | 471 |
| 1P-3704 |
SEAL
|
1 | 471 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
2 | 471 |
| 6V-8398 |
SEAL - O - RING (OD=16.03mm)
|
2 | 471 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
1 | 471 |
| 8T-4121 |
WASHER
|
10 | 471 |
| 8T-4139 |
BOLT (L=30mm)
|
4 | 471 |
| 8T-4186 |
BOLT (L=40mm)
|
2 | 471 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm) H 9 1 2 9 8 E 03
|
2 | 471 |
