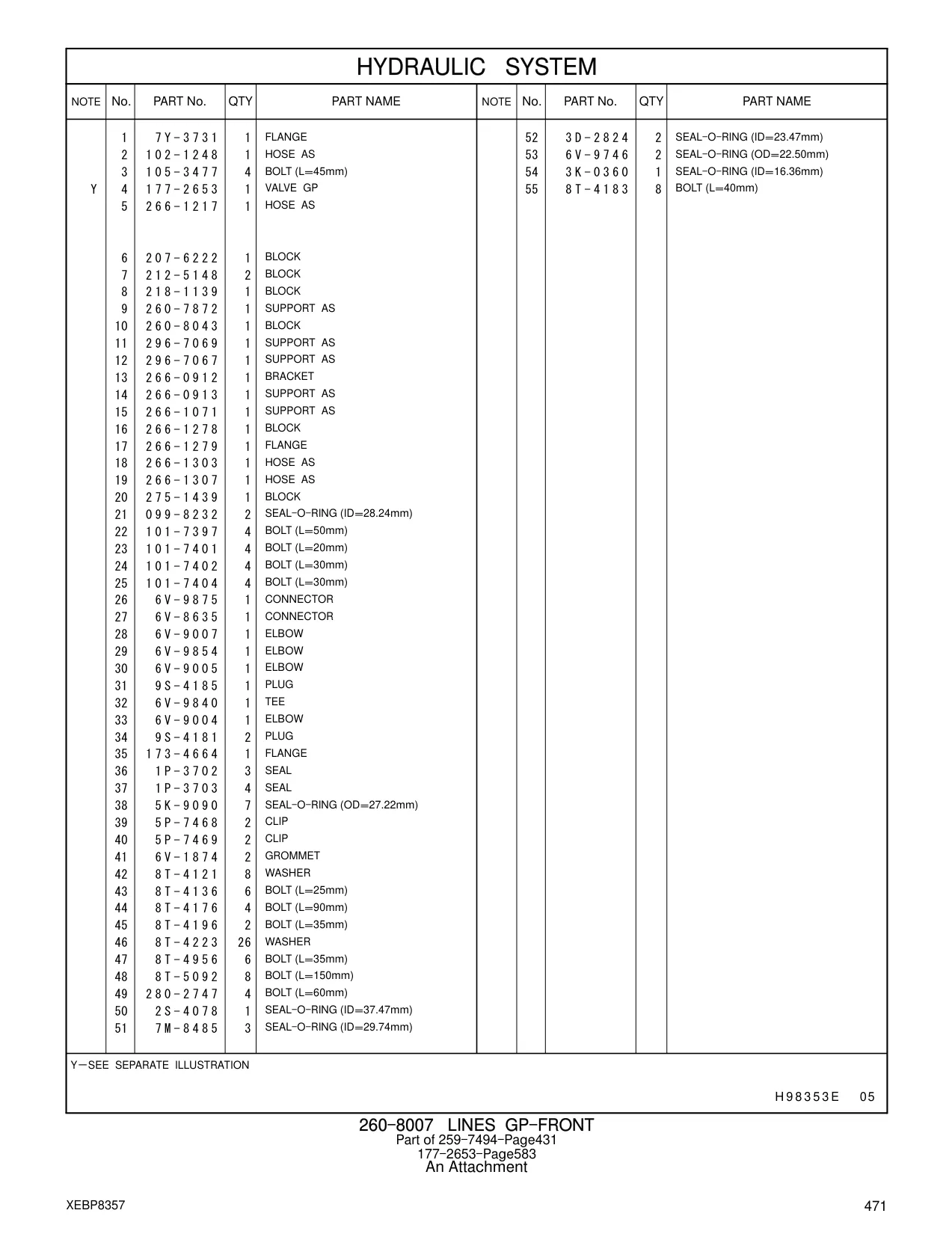

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 259-7494 |
259-7494
|
1 | 530 |
| 177-2653 |
177-2653
|
1 | 530 |
| 7Y-3731 |
FLANGE
|
1 | 531 |
| 3D-2824 |
SEAL - O - RING (ID=23.47mm)
|
2 | 531 |
| 102-1248 |
HOSE AS
|
1 | 531 |
| 6V-9746 |
SEAL - O - RING (OD=22.50mm)
|
2 | 531 |
| 105-3477 |
BOLT (L=45mm)
|
4 | 531 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
1 | 531 |
| 177-2653 |
VALVE GP
|
1 | 531 |
| 266-1217 |
HOSE AS
|
1 | 531 |
| 207-6222 |
BLOCK
|
1 | 531 |
| 212-5148 |
BLOCK
|
2 | 531 |
| 218-1139 |
BLOCK
|
1 | 531 |
| 260-7872 |
SUPPORT AS
|
1 | 531 |
| 260-8043 |
BLOCK
|
1 | 531 |
| 296-7069 |
SUPPORT AS
|
1 | 531 |
| 296-7067 |
SUPPORT AS
|
1 | 531 |
| 266-0912 |
BRACKET
|
1 | 531 |
| 266-0913 |
SUPPORT AS
|
1 | 531 |
| 266-1071 |
SUPPORT AS
|
1 | 531 |
| 266-1278 |
BLOCK
|
1 | 531 |
| 266-1279 |
FLANGE
|
1 | 531 |
| 266-1303 |
HOSE AS
|
1 | 531 |
| 317-4712 |
HOSE AS
|
1 | 531 |
| 275-1439 |
BLOCK
|
1 | 531 |
| 099-8232 |
SEAL - O - RING (ID=28.24mm)
|
2 | 531 |
| 101-7397 |
BOLT (L=50mm)
|
4 | 531 |
| 101-7401 |
BOLT (L=20mm)
|
4 | 531 |
| 101-7402 |
BOLT (L=30mm)
|
4 | 531 |
| 101-7404 |
BOLT (L=30mm)
|
4 | 531 |
| 6V-9875 |
CONNECTOR
|
1 | 531 |
| 8T-0198 |
CONNECTOR
|
1 | 531 |
| 6V-9007 |
ELBOW
|
1 | 531 |
| 6V-9854 |
ELBOW
|
1 | 531 |
| 6V-9005 |
ELBOW
|
1 | 531 |
| 9S-4185 |
PLUG
|
1 | 531 |
| 6V-9840 |
TEE
|
1 | 531 |
| 6V-9004 |
ELBOW
|
1 | 531 |
| 9S-4181 |
PLUG
|
2 | 531 |
| 173-4664 |
FLANGE
|
1 | 531 |
| 1P-3702 |
SEAL
|
3 | 531 |
| 1P-3703 |
SEAL
|
4 | 531 |
| 5K-9090 |
SEAL - O - RING (OD=27.22mm)
|
7 | 531 |
| 5P-7468 |
CLIP
|
2 | 531 |
| 5P-7469 |
CLIP
|
2 | 531 |
| 6V-1874 |
GROMMET
|
2 | 531 |
| 8T-4121 |
WASHER
|
8 | 531 |
| 8T-4136 |
BOLT (L=25mm)
|
6 | 531 |
| 8T-4176 |
BOLT (L=90mm)
|
4 | 531 |
| 8T-4196 |
BOLT (L=35mm)
|
2 | 531 |
