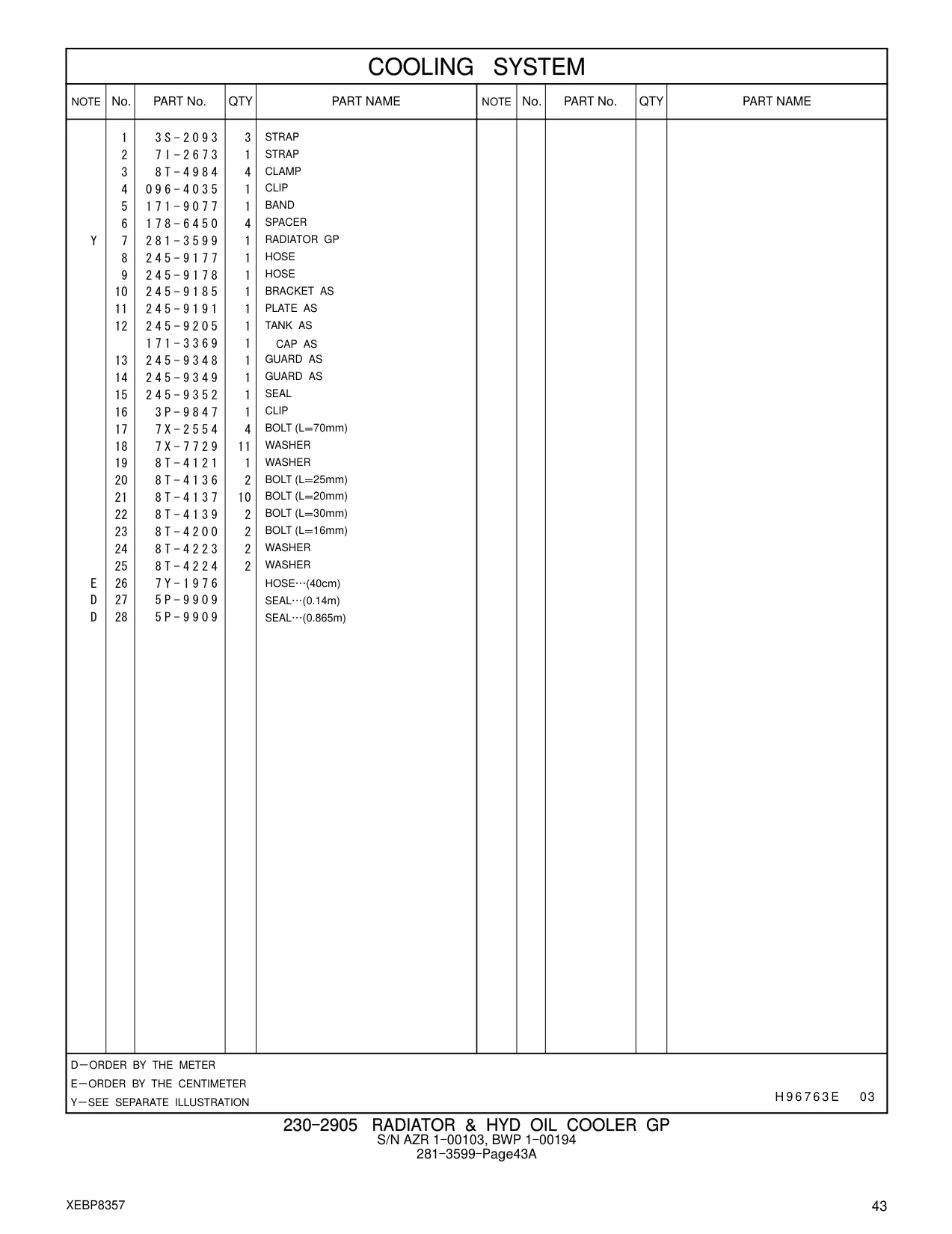

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 281-3599 |
281-3599
|
1 | 58 |
| 3S-2093 |
STRAP
|
3 | 59 |
| 7I-2673 |
STRAP
|
1 | 59 |
| 8T-4984 |
CLAMP
|
4 | 59 |
| 096-4035 |
CLIP
|
1 | 59 |
| 171-9077 |
BAND
|
1 | 59 |
| 178-6450 |
SPACER
|
4 | 59 |
| 281-3599 |
RADIATOR GP
|
1 | 59 |
| 245-9178 |
HOSE
|
1 | 59 |
| 245-9185 |
BRACKET AS
|
1 | 59 |
| 245-9191 |
PLATE AS
|
1 | 59 |
| 245-9205 |
TANK AS
|
1 | 59 |
| 171-3369 |
CAP AS
|
1 | 59 |
| 245-9348 |
GUARD AS
|
1 | 59 |
| 245-9349 |
GUARD AS
|
1 | 59 |
| 245-9352 |
SEAL
|
1 | 59 |
| 3P-9847 |
CLIP
|
1 | 59 |
| 7X-2554 |
BOLT (L=70mm)
|
4 | 59 |
| 7X-7729 |
WASHER
|
11 | 59 |
| 8T-4121 |
WASHER
|
1 | 59 |
| 8T-4136 |
BOLT (L=25mm)
|
2 | 59 |
| 8T-4137 |
BOLT (L=20mm)
|
10 | 59 |
| 8T-4139 |
BOLT (L=30mm)
|
2 | 59 |
| 8T-4200 |
BOLT (L=16mm)
|
2 | 59 |
| 8T-4223 |
WASHER
|
2 | 59 |
| 8T-4224 |
WASHER
|
2 | 59 |
| 7Y-1976 |
HOSE (40cm)
|
1 | 59 |
| 5P-9909 |
SEAL (0.14m)
|
1 | 59 |
| 5P-9909 |
SEAL (0.865m)
|
1 | 59 |
