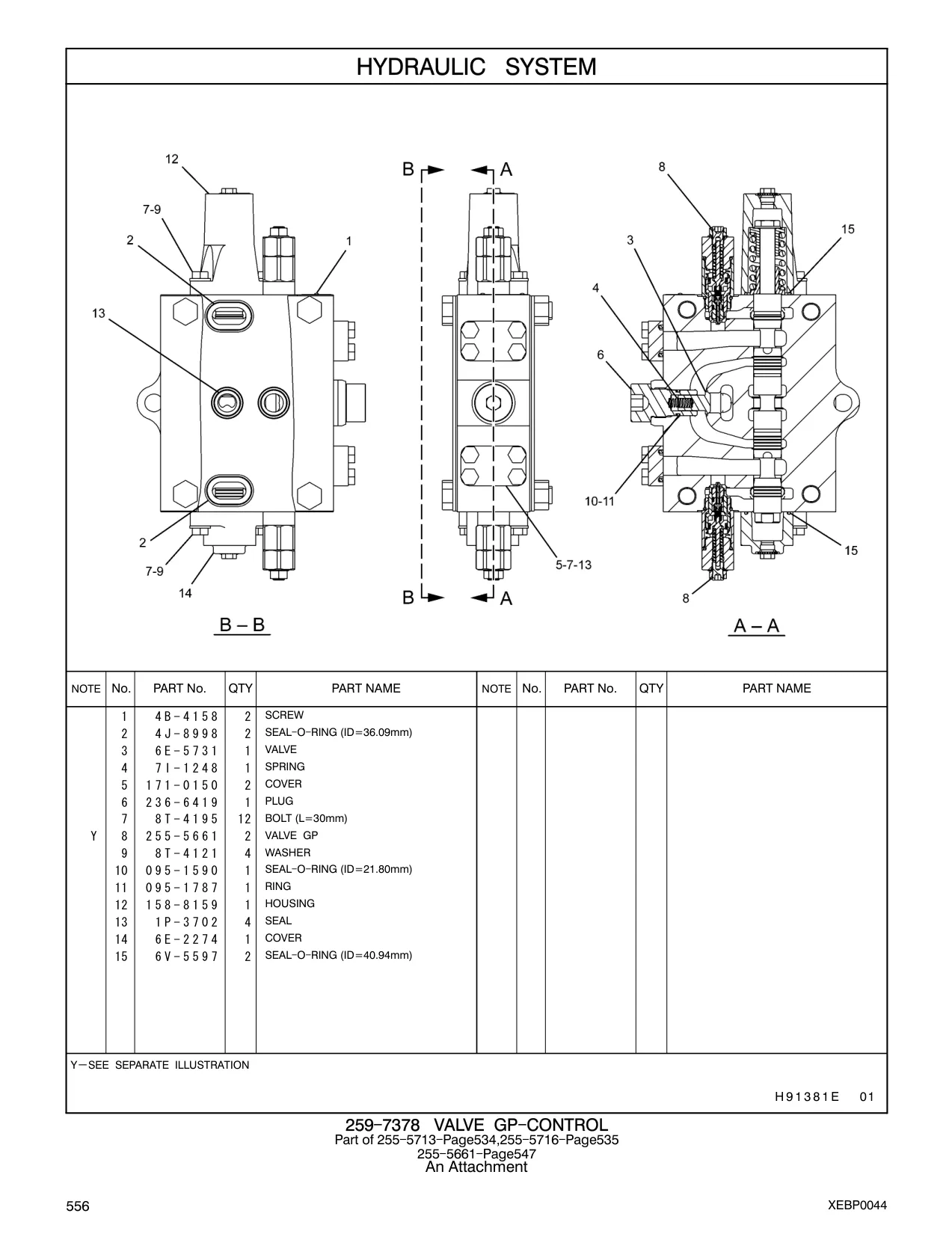

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 4B-4158 |
SCREW
|
2 | 598 |
| 4J-8998 |
SEAL - O - RING (ID=36.09mm)
|
2 | 598 |
| 6E-5731 |
VALVE
|
1 | 598 |
| 7I-1248 |
SPRING
|
1 | 598 |
| 236-6419 |
PLUG
|
1 | 598 |
| 8T-4195 |
BOLT (L=30mm)
|
12 | 598 |
| 255-5661 |
VALVE GP
|
2 | 598 |
| 8T-4121 |
WASHER
|
4 | 598 |
| 095-1590 |
SEAL - O - RING (ID=21.80mm)
|
1 | 598 |
| 095-1787 |
RING
|
1 | 598 |
| 158-8159 |
HOUSING
|
1 | 598 |
| 1P-3702 |
SEAL
|
4 | 598 |
| 6E-2274 |
COVER
|
1 | 598 |
| 6V-5597 |
SEAL - O - RING (ID=40.94mm)
|
2 | 598 |
| 4B-4158 |
SCREW
|
2 | 642 |
| 4J-8998 |
SEAL - O - RING (ID=36.09mm)
|
2 | 642 |
| 6E-5731 |
VALVE
|
1 | 642 |
| 7I-1248 |
SPRING
|
1 | 642 |
| 236-6419 |
PLUG
|
1 | 642 |
| 8T-4195 |
BOLT (L=30mm)
|
12 | 642 |
| 255-5661 |
VALVE GP
|
2 | 642 |
| 8T-4121 |
WASHER
|
4 | 642 |
| 095-1590 |
SEAL - O - RING (ID=21.80mm)
|
1 | 642 |
| 095-1787 |
RING
|
1 | 642 |
| 158-8159 |
HOUSING
|
1 | 642 |
| 1P-3702 |
SEAL
|
4 | 642 |
| 6E-2274 |
COVER
|
1 | 642 |
| 6V-5597 |
SEAL - O - RING (ID=40.94mm)
|
2 | 642 |
