| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 173-7972 |
173-7972
|
1 | 446 |
| 165-9549 |
165-9549
|
1 | 446 |

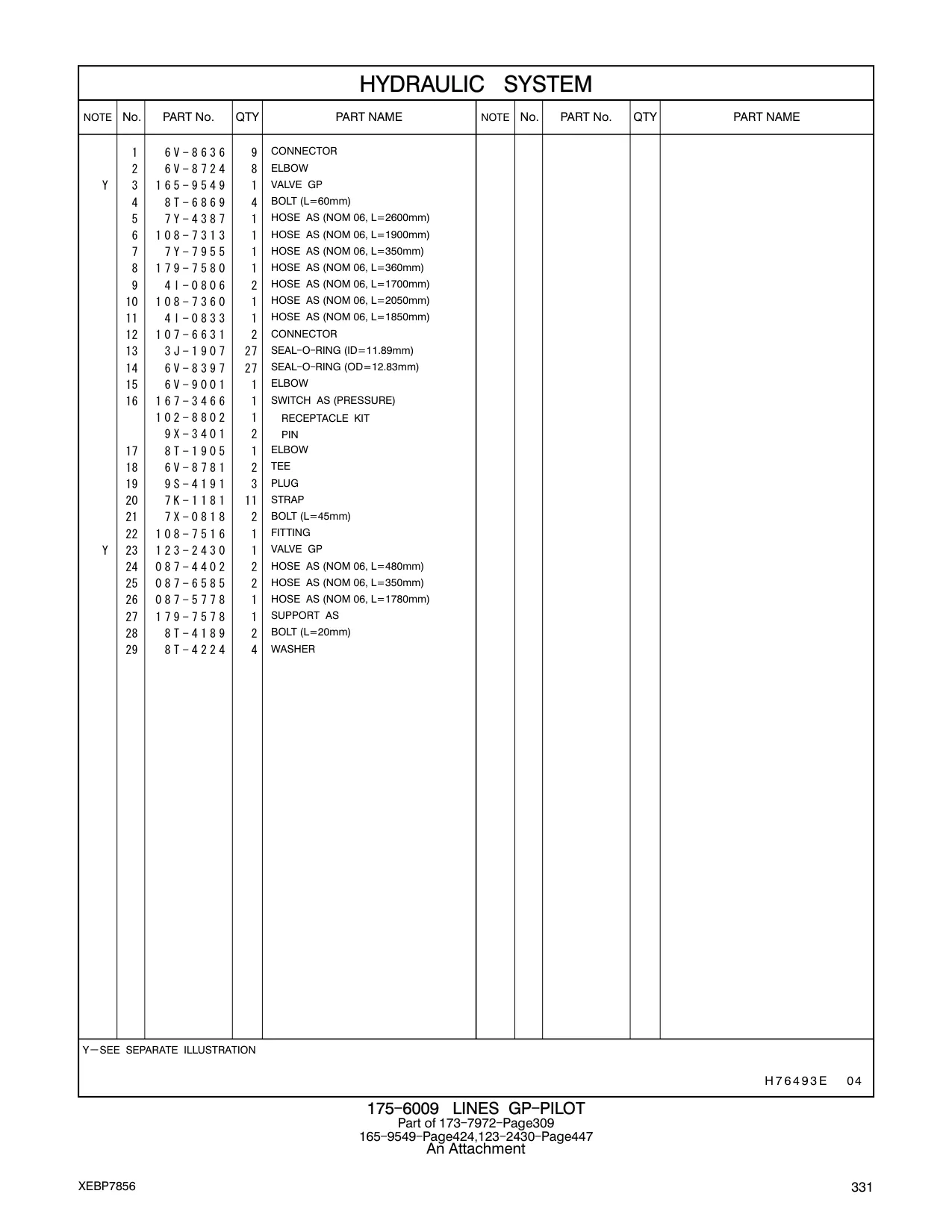

| 6V-8636 |
CONNECTOR
|
9 | 447 |
| 6V-8724 |
ELBOW
|
8 | 447 |
| 165-9549 |
VALVE GP
|
1 | 447 |
| 8T-6869 |
BOLT (L=60mm)
|
4 | 447 |
| 108-7313 |
HOSE AS (NOM 06, L=1900mm)
|
1 | 447 |
| 7Y-7955 |
HOSE AS (NOM 06, L=350mm)
|
1 | 447 |
| 179-7580 |
HOSE AS (NOM 06, L=360mm)
|
1 | 447 |
| 4I-0806 |
HOSE AS (NOM 06, L=1700mm)
|
2 | 447 |
| 108-7360 |
HOSE AS (NOM 06, L=2050mm)
|
1 | 447 |
| 4I-0833 |
HOSE AS (NOM 06, L=1850mm)
|
1 | 447 |
| 107-6631 |
CONNECTOR
|
2 | 447 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
27 | 447 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
27 | 447 |
| 6V-9001 |
ELBOW
|
1 | 447 |
| 167-3466 |
SWITCH AS (PRESSURE)
|
1 | 447 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 447 |
| 9X-3401 |
PIN
|
2 | 447 |
| 8T-1905 |
ELBOW
|
1 | 447 |
| 6V-8781 |
TEE
|
2 | 447 |
| 9S-4191 |
PLUG
|
3 | 447 |
| 7K-1181 |
STRAP
|
11 | 447 |
| 7X-0818 |
BOLT (L=45mm)
|
2 | 447 |
| 108-7516 |
FITTING
|
1 | 447 |
| 123-2430 |
VALVE GP
|
1 | 447 |
| 087-4402 |
HOSE AS (NOM 06, L=480mm)
|
2 | 447 |
| 087-6585 |
HOSE AS (NOM 06, L=350mm)
|
2 | 447 |
| 087-5778 |
HOSE AS (NOM 06, L=1780mm)
|
1 | 447 |
| 179-7578 |
SUPPORT AS
|
1 | 447 |
| 8T-4189 |
BOLT (L=20mm)
|
2 | 447 |
| 8T-4224 |
WASHER
|
4 | 447 |
| 173-7972 |
173-7972
|
1 | 586 |
| 165-9549 |
165-9549
|
1 | 586 |
| 6V-8636 |
CONNECTOR
|
9 | 587 |
| 6V-8724 |
ELBOW
|
8 | 587 |
| 165-9549 |
VALVE GP
|
1 | 587 |
| 8T-6869 |
BOLT (L=60mm)
|
4 | 587 |
| 108-7313 |
HOSE AS (NOM 06, L=1900mm)
|
1 | 587 |
| 7Y-7955 |
HOSE AS (NOM 06, L=350mm)
|
1 | 587 |
| 179-7580 |
HOSE AS (NOM 06, L=360mm)
|
1 | 587 |
| 4I-0806 |
HOSE AS (NOM 06, L=1700mm)
|
2 | 587 |
| 108-7360 |
HOSE AS (NOM 06, L=2050mm)
|
1 | 587 |
| 4I-0833 |
HOSE AS (NOM 06, L=1850mm)
|
1 | 587 |
| 107-6631 |
CONNECTOR
|
2 | 587 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
27 | 587 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
27 | 587 |
| 6V-9001 |
ELBOW
|
1 | 587 |
| 167-3466 |
SWITCH AS (PRESSURE)
|
1 | 587 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 587 |
