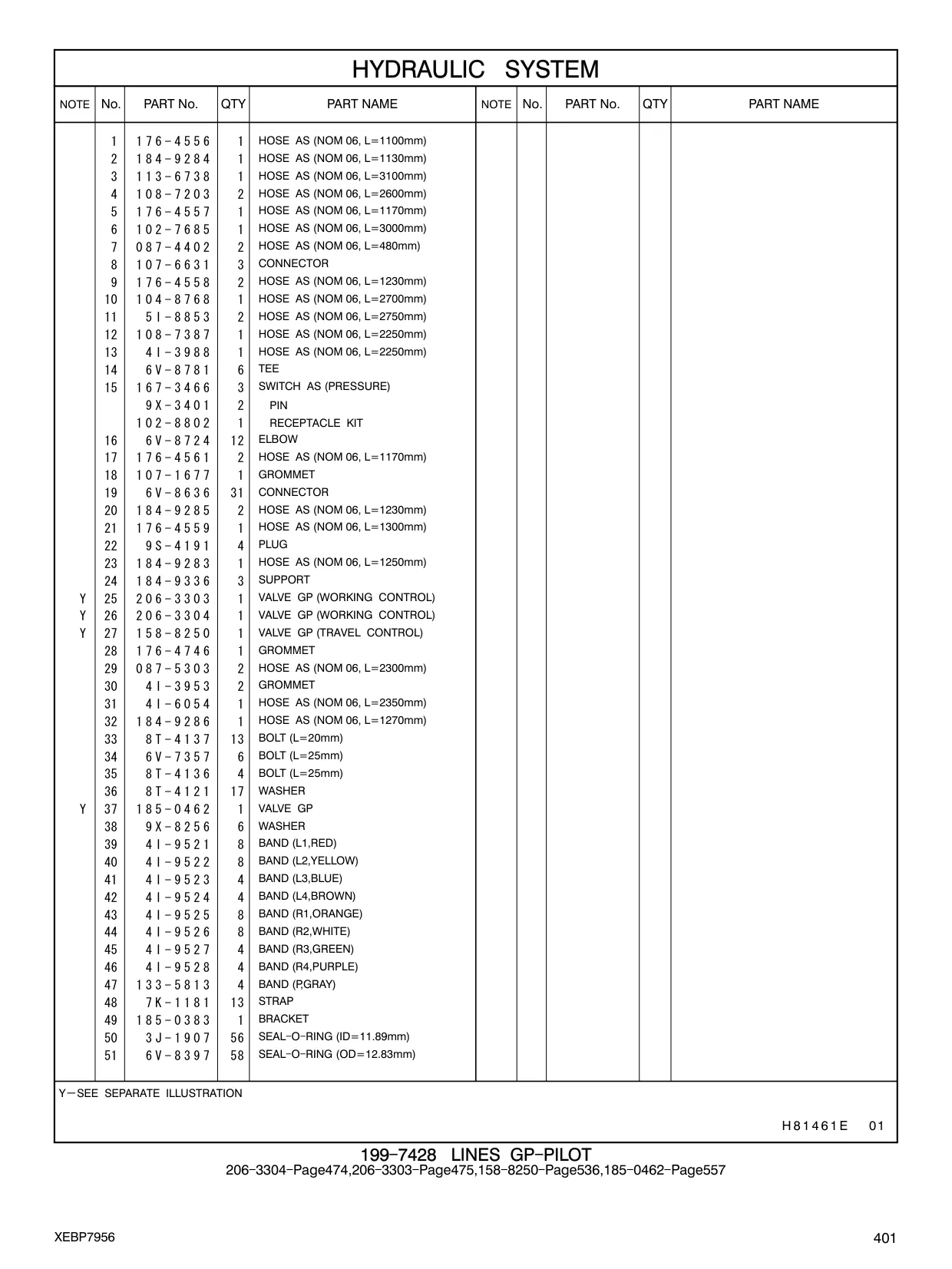

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 206-3304 |
206-3304
|
1 | 651 |
| 158-8250 |
158-8250
|
1 | 651 |
| 176-4556 |
HOSE AS (NOM 06, L=1100mm)
|
1 | 652 |
| 184-9284 |
HOSE AS (NOM 06, L=1130mm)
|
1 | 652 |
| 113-6738 |
HOSE AS (NOM 06, L=3100mm)
|
1 | 652 |
| 108-7203 |
HOSE AS (NOM 06, L=2600mm)
|
2 | 652 |
| 176-4557 |
HOSE AS (NOM 06, L=1170mm)
|
1 | 652 |
| 102-7685 |
HOSE AS (NOM 06, L=3000mm)
|
1 | 652 |
| 087-4402 |
HOSE AS (NOM 06, L=480mm)
|
2 | 652 |
| 107-6631 |
CONNECTOR
|
3 | 652 |
| 176-4558 |
HOSE AS (NOM 06, L=1230mm)
|
2 | 652 |
| 104-8768 |
HOSE AS (NOM 06, L=2700mm)
|
1 | 652 |
| 5I-8853 |
HOSE AS (NOM 06, L=2750mm)
|
2 | 652 |
| 108-7387 |
HOSE AS (NOM 06, L=2250mm)
|
1 | 652 |
| 4I-3988 |
HOSE AS (NOM 06, L=2250mm)
|
1 | 652 |
| 6V-8781 |
TEE
|
6 | 652 |
| 167-3466 |
SWITCH AS (PRESSURE)
|
3 | 652 |
| 9X-3401 |
PIN
|
2 | 652 |
| 102-8802 |
RECEPTACLE KIT
|
1 | 652 |
| 6V-8724 |
ELBOW
|
12 | 652 |
| 176-4561 |
HOSE AS (NOM 06, L=1170mm)
|
2 | 652 |
| 107-1677 |
GROMMET
|
1 | 652 |
| 6V-8636 |
CONNECTOR
|
31 | 652 |
| 184-9285 |
HOSE AS (NOM 06, L=1230mm)
|
2 | 652 |
| 176-4559 |
HOSE AS (NOM 06, L=1300mm)
|
1 | 652 |
| 9S-4191 |
PLUG
|
4 | 652 |
| 184-9283 |
HOSE AS (NOM 06, L=1250mm)
|
1 | 652 |
| 184-9336 |
SUPPORT
|
3 | 652 |
| 206-3303 |
VALVE GP (WORKING CONTROL)
|
1 | 652 |
| 206-3304 |
VALVE GP (WORKING CONTROL)
|
1 | 652 |
| 158-8250 |
VALVE GP (TRAVEL CONTROL)
|
1 | 652 |
| 176-4746 |
GROMMET
|
1 | 652 |
| 087-5303 |
HOSE AS (NOM 06, L=2300mm)
|
2 | 652 |
| 4I-3953 |
GROMMET
|
2 | 652 |
| 4I-6054 |
HOSE AS (NOM 06, L=2350mm)
|
1 | 652 |
| 184-9286 |
HOSE AS (NOM 06, L=1270mm)
|
1 | 652 |
| 8T-4137 |
BOLT (L=20mm)
|
13 | 652 |
| 6V-7357 |
BOLT (L=25mm)
|
6 | 652 |
| 8T-4136 |
BOLT (L=25mm)
|
4 | 652 |
| 8T-4121 |
WASHER
|
17 | 652 |
| 185-0462 |
VALVE GP
|
1 | 652 |
| 9X-8256 |
WASHER
|
6 | 652 |
| 4I-9521 |
BAND (L1,RED)
|
8 | 652 |
| 4I-9522 |
BAND (L2,YELLOW)
|
8 | 652 |
| 4I-9523 |
BAND (L3,BLUE)
|
4 | 652 |
| 4I-9524 |
BAND (L4,BROWN)
|
4 | 652 |
| 4I-9525 |
BAND (R1,ORANGE)
|
8 | 652 |
| 4I-9527 |
BAND (R3,GREEN)
|
4 | 652 |
| 4I-9528 |
BAND (R4,PURPLE)
|
4 | 652 |
| 133-5813 |
BAND (P,GRAY)
|
4 | 652 |
