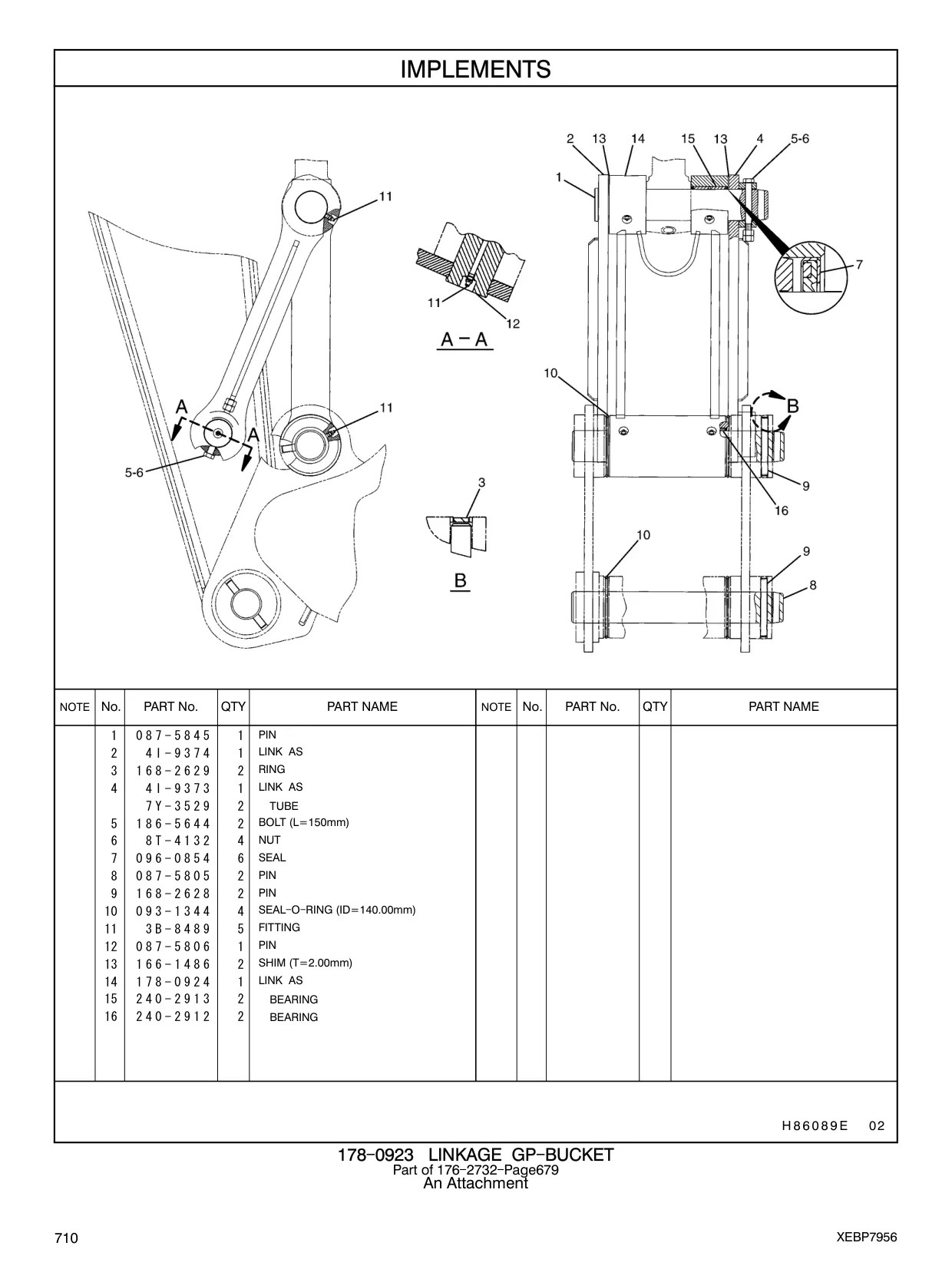

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 087-5845 |
PIN
|
1 | 1073 |
| 168-2629 |
RING
|
2 | 1073 |
| 4I-9373 |
LINK AS
|
1 | 1073 |
| 7Y-3529 |
TUBE
|
2 | 1073 |
| 186-5644 |
BOLT (L=150mm)
|
2 | 1073 |
| 8T-4132 |
NUT
|
4 | 1073 |
| 096-0854 |
SEAL
|
6 | 1073 |
| 087-5805 |
PIN
|
2 | 1073 |
| 168-2628 |
PIN
|
2 | 1073 |
| 093-1344 |
SEAL - O - RING (ID=140.00mm)
|
4 | 1073 |
| 3B-8489 |
FITTING
|
5 | 1073 |
| 087-5806 |
PIN
|
1 | 1073 |
| 166-1486 |
SHIM (T=2.00mm)
|
2 | 1073 |
| 178-0924 |
LINK AS
|
1 | 1073 |
| 240-2913 |
BEARING
|
2 | 1073 |
| 240-2912 |
BEARING
|
2 | 1073 |
| 087-5845 |
PIN
|
1 | 967 |
| 168-2629 |
RING
|
2 | 967 |
| 4I-9373 |
LINK AS
|
1 | 967 |
| 7Y-3529 |
TUBE
|
2 | 967 |
| 186-5644 |
BOLT (L=150mm)
|
2 | 967 |
| 8T-4132 |
NUT
|
4 | 967 |
| 096-0854 |
SEAL
|
6 | 967 |
| 087-5805 |
PIN
|
2 | 967 |
| 168-2628 |
PIN
|
2 | 967 |
| 093-1344 |
SEAL - O - RING (ID=140.00mm)
|
4 | 967 |
| 3B-8489 |
FITTING
|
5 | 967 |
| 087-5806 |
PIN
|
1 | 967 |
| 166-1486 |
SHIM (T=2.00mm)
|
2 | 967 |
| 178-0924 |
LINK AS
|
1 | 967 |
| 137-2919 |
BEARING
|
2 | 967 |
| 143-3841 |
BEARING
|
2 | 967 |
| 087-5845 |
PIN
|
1 | 753 |
| 168-2629 |
RING
|
2 | 753 |
| 4I-9373 |
LINK AS
|
1 | 753 |
| 7Y-3529 |
TUBE
|
2 | 753 |
| 7X-2558 |
BOLT (L=150mm)
|
2 | 753 |
| 8T-4132 |
NUT
|
4 | 753 |
| 096-0854 |
SEAL
|
6 | 753 |
| 087-5805 |
PIN
|
2 | 753 |
| 168-2628 |
PIN
|
2 | 753 |
| 093-1344 |
SEAL - O - RING (ID=140.00mm)
|
4 | 753 |
| 3B-8489 |
FITTING
|
5 | 753 |
| 087-5806 |
PIN
|
1 | 753 |
| 166-1486 |
SHIM (T=2.00mm)
|
2 | 753 |
| 178-0924 |
LINK AS
|
1 | 753 |
| 137-2919 |
BEARING
|
2 | 753 |
| 143-3841 |
BEARING
|
2 | 753 |
| 087-5845 |
PIN
|
1 | 932 |
| 168-2629 |
RING
|
2 | 932 |
