| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 202-7134 |
TUBE AS
|
1 | 600 |
| 179-5004 |
TUBE AS
|
1 | 600 |
| 179-5005 |
TUBE AS
|
1 | 600 |
| 179-5006 |
TUBE AS
|
1 | 600 |
| 153-8801 |
SUPPORT AS
|
1 | 600 |
| 153-8799 |
PLATE
|
2 | 600 |
| 153-8798 |
PLATE
|
2 | 600 |
| 1P-3705 |
SEAL
|
1 | 600 |
| 5K-9090 |
SEAL - O - RING (OD=27.22mm)
|
3 | 600 |
| 7Y-4538 |
CLAMP
|
6 | 600 |
| 173-7916 |
CLAMP
|
6 | 600 |
| 8T-4910 |
BOLT (L=60mm)
|
4 | 600 |
| 8T-4184 |
BOLT (L=45mm)
|
14 | 600 |
| 8T-4139 |
BOLT (L=30mm)
|
10 | 600 |
| 8T-4183 |
BOLT (L=40mm)
|
4 | 600 |
| 8T-4223 |
WASHER
|
34 | 600 |
| 8T-4194 |
BOLT (L=50mm)
|
2 | 600 |
| 173-7995 |
PLATE
|
1 | 600 |
| 216-6585 |
HOSE AS
|
1 | 600 |
| 216-6589 |
HOSE AS
|
1 | 600 |
| 1P-5767 |
FLANGE
|
4 | 600 |
| 1P-3704 |
SEAL
|
2 | 600 |
| 202-7127 |
PLATE
|
1 | 600 |
| 202-7128 |
PLATE
|
2 | 600 |
| 138-5708 |
CLIP
|
2 | 600 |
| 124-1107 |
GROMMET
|
1 | 600 |
| 124-1108 |
CLIP
|
2 | 600 |
| 129-5874 |
GROMMET
|
1 | 600 |
| 7X-2553 |
BOLT (L=40mm)
|
2 | 600 |
| 9X-8257 |
WASHER
|
2 | 600 |
| 7X-2549 |
BOLT (L=100mm)
|
4 | 600 |
| 3B-8485 |
FITTING
|
2 | 600 |

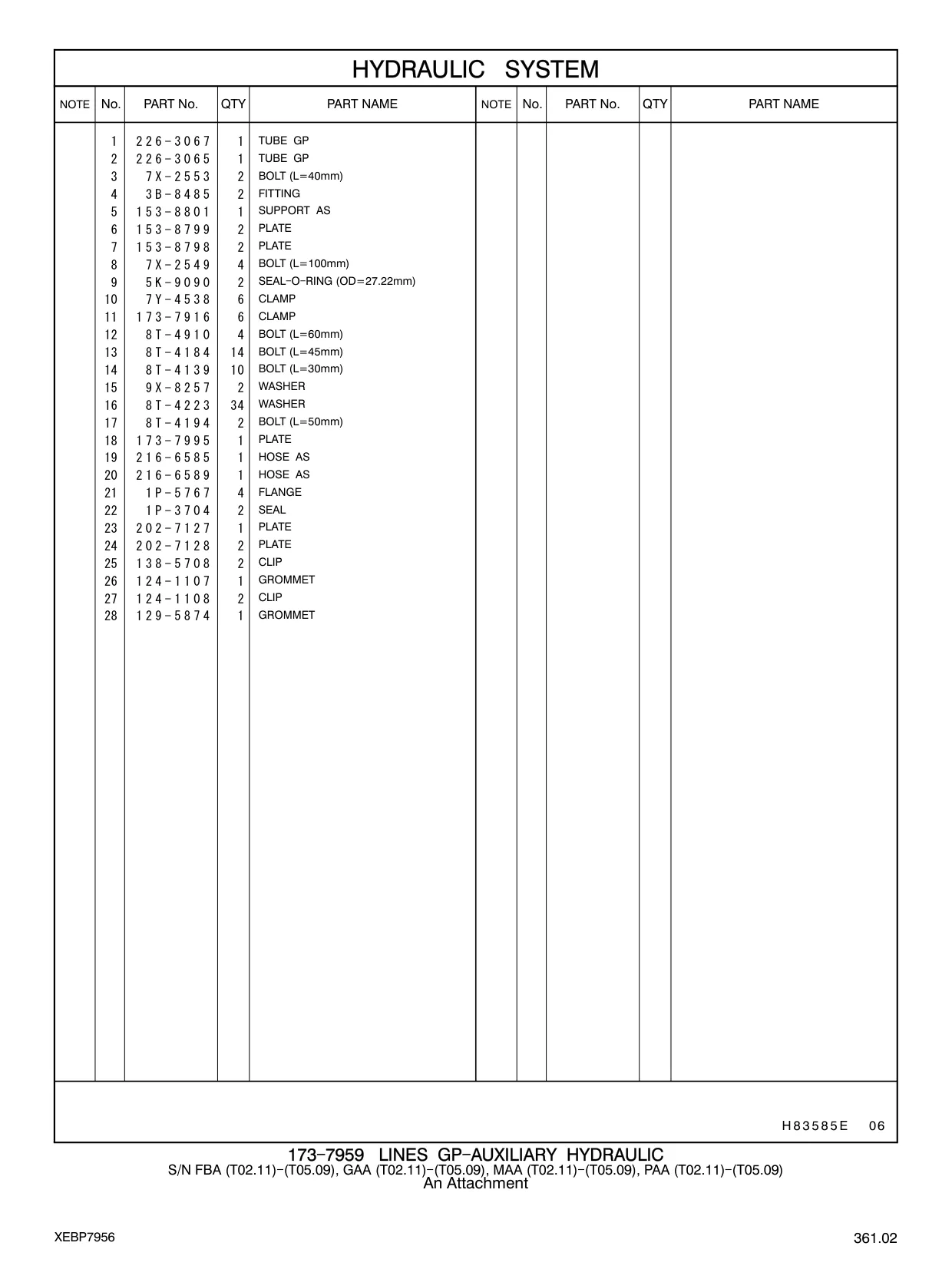

| 226-3065 |
TUBE GP
|
1 | 602 |
| 7X-2553 |
BOLT (L=40mm)
|
2 | 602 |
| 3B-8485 |
FITTING
|
2 | 602 |
| 153-8801 |
SUPPORT AS
|
1 | 602 |
| 153-8799 |
PLATE
|
2 | 602 |
| 153-8798 |
PLATE
|
2 | 602 |
| 7X-2549 |
BOLT (L=100mm)
|
4 | 602 |
| 5K-9090 |
SEAL - O - RING (OD=27.22mm)
|
2 | 602 |
| 7Y-4538 |
CLAMP
|
6 | 602 |
| 173-7916 |
CLAMP
|
6 | 602 |
| 8T-4910 |
BOLT (L=60mm)
|
4 | 602 |
| 8T-4184 |
BOLT (L=45mm)
|
14 | 602 |
| 8T-4139 |
BOLT (L=30mm)
|
10 | 602 |
| 9X-8257 |
WASHER
|
2 | 602 |
| 8T-4223 |
WASHER
|
34 | 602 |
| 8T-4194 |
BOLT (L=50mm)
|
2 | 602 |
| 173-7995 |
PLATE
|
1 | 602 |
| 216-6585 |
HOSE AS
|
1 | 602 |
