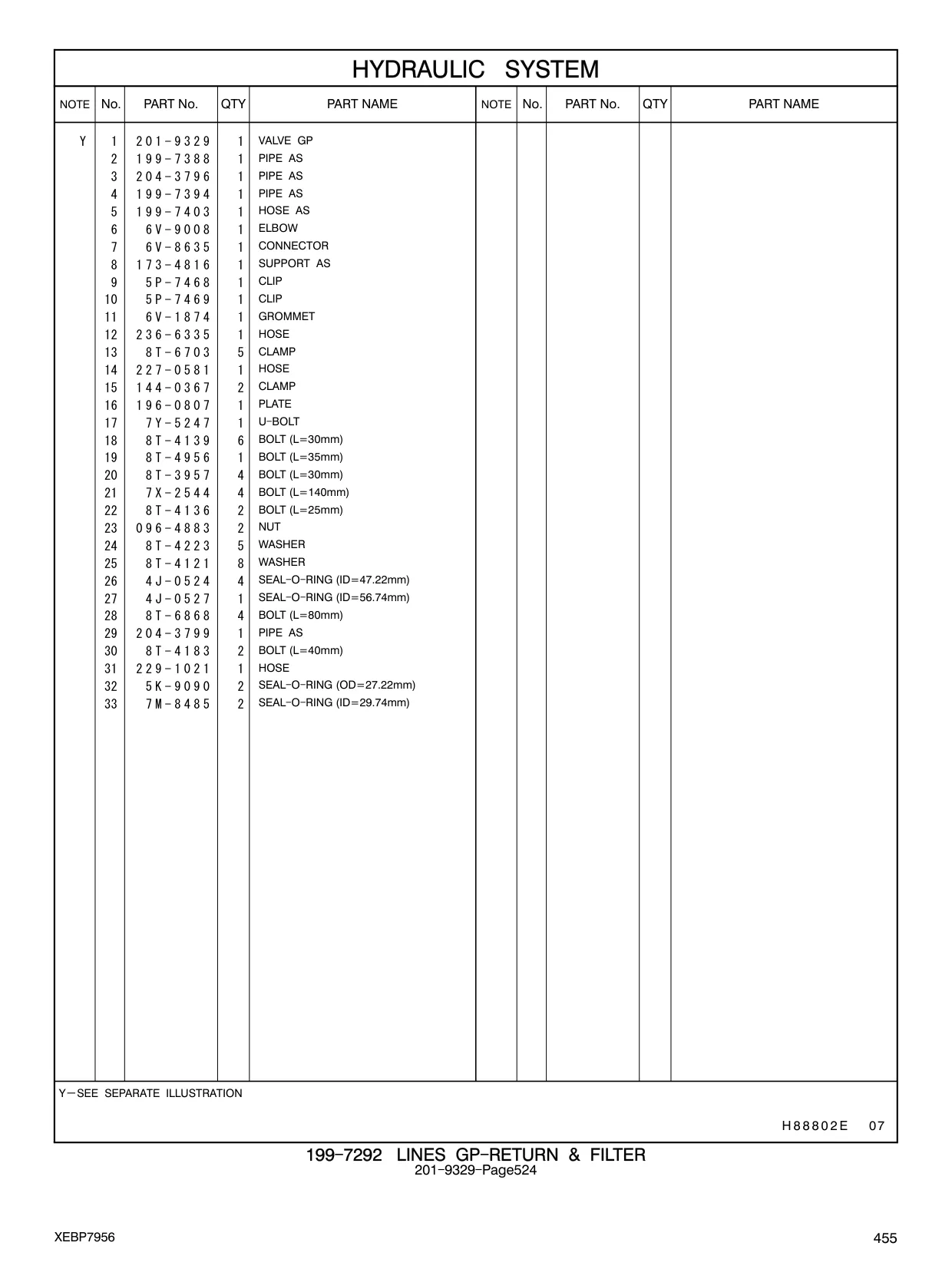

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 201-9329 |
201-9329
|
1 | 745 |
| 201-9329 |
VALVE GP
|
1 | 746 |
| 199-7388 |
PIPE AS
|
1 | 746 |
| 204-3796 |
PIPE AS
|
1 | 746 |
| 199-7394 |
PIPE AS
|
1 | 746 |
| 6V-9008 |
ELBOW
|
1 | 746 |
| 6V-8635 |
CONNECTOR
|
1 | 746 |
| 173-4816 |
SUPPORT AS
|
1 | 746 |
| 5P-7468 |
CLIP
|
1 | 746 |
| 5P-7469 |
CLIP
|
1 | 746 |
| 6V-1874 |
GROMMET
|
1 | 746 |
| 236-6335 |
HOSE
|
1 | 746 |
| 8T-6703 |
CLAMP
|
5 | 746 |
| 227-0581 |
HOSE
|
1 | 746 |
| 144-0367 |
CLAMP
|
2 | 746 |
| 196-0807 |
PLATE
|
1 | 746 |
| 7Y-5247 |
U - BOLT
|
1 | 746 |
| 8T-4139 |
BOLT (L=30mm)
|
6 | 746 |
| 8T-4956 |
BOLT (L=35mm)
|
1 | 746 |
| 8T-3957 |
BOLT (L=30mm)
|
4 | 746 |
| 7X-2544 |
BOLT (L=140mm)
|
4 | 746 |
| 8T-4136 |
BOLT (L=25mm)
|
2 | 746 |
| 096-4883 |
NUT
|
2 | 746 |
| 8T-4223 |
WASHER
|
5 | 746 |
| 8T-4121 |
WASHER
|
8 | 746 |
| 4J-0524 |
SEAL - O - RING (ID=47.22mm)
|
4 | 746 |
| 4J-0527 |
SEAL - O - RING (ID=56.74mm)
|
1 | 746 |
| 8T-6868 |
BOLT (L=80mm)
|
4 | 746 |
| 204-3799 |
PIPE AS
|
1 | 746 |
| 8T-4183 |
BOLT (L=40mm)
|
2 | 746 |
| 229-1021 |
HOSE
|
1 | 746 |
| 5K-9090 |
SEAL - O - RING (OD=27.22mm)
|
2 | 746 |
| 7M-8485 |
SEAL - O - RING (ID=29.74mm)
|
2 | 746 |
