| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 153-8824 |
153-8824
|
1 | 456 |
| 171-0188 |
171-0188
|
1 | 456 |

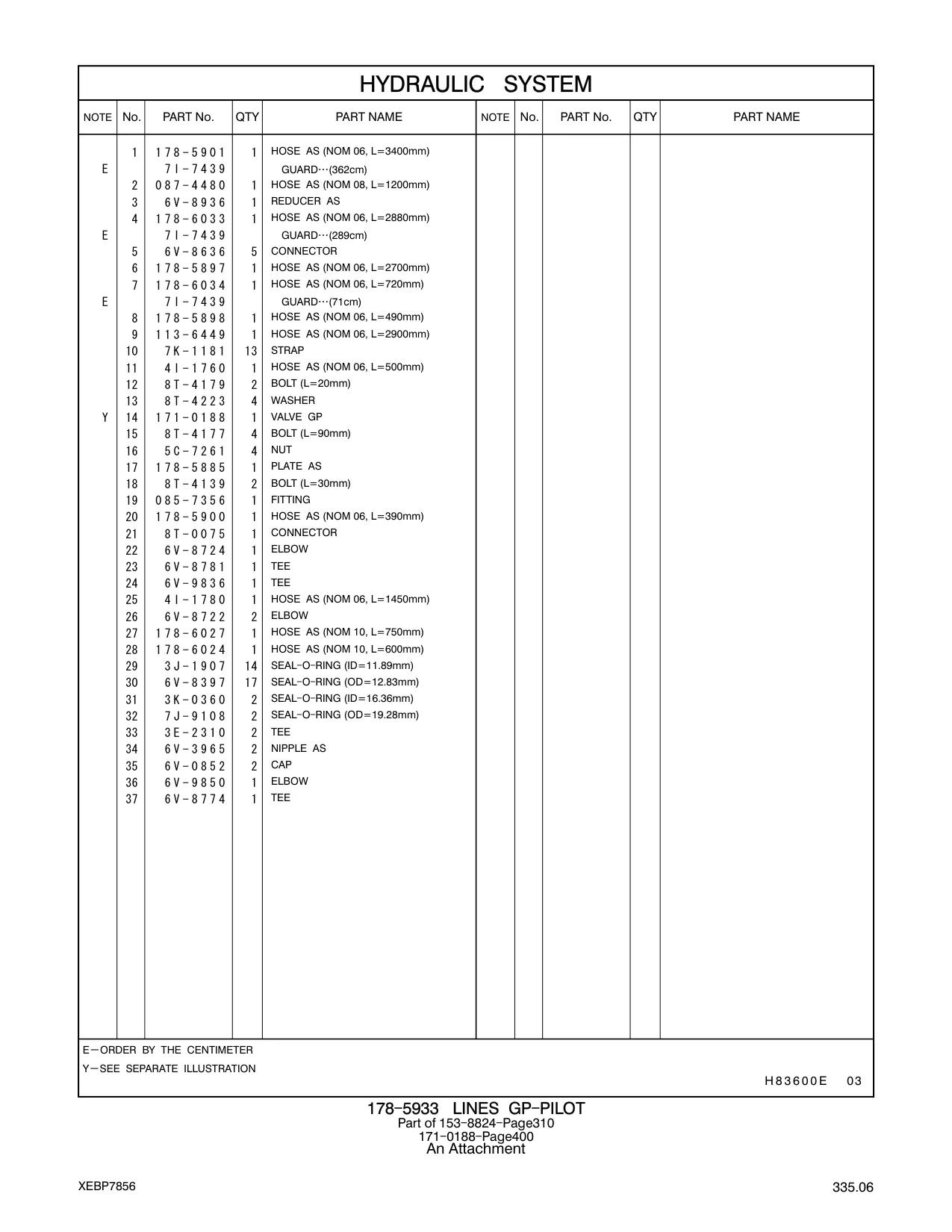

| 178-5901 |
HOSE AS (NOM 06, L=3400mm)
|
1 | 457 |
| 7I-7439 |
GUARD (362cm)
|
1 | 457 |
| 6V-8936 |
REDUCER AS
|
1 | 457 |
| 178-6033 |
HOSE AS (NOM 06, L=2880mm)
|
1 | 457 |
| 7I-7439 |
GUARD (289cm)
|
1 | 457 |
| 6V-8636 |
CONNECTOR
|
5 | 457 |
| 178-5897 |
HOSE AS (NOM 06, L=2700mm)
|
1 | 457 |
| 178-6034 |
HOSE AS (NOM 06, L=720mm)
|
1 | 457 |
| 7I-7439 |
GUARD (71cm)
|
1 | 457 |
| 178-5898 |
HOSE AS (NOM 06, L=490mm)
|
1 | 457 |
| 113-6449 |
HOSE AS (NOM 06, L=2900mm)
|
1 | 457 |
| 7K-1181 |
STRAP
|
13 | 457 |
| 4I-1760 |
HOSE AS (NOM 06, L=500mm)
|
1 | 457 |
| 8T-4179 |
BOLT (L=20mm)
|
2 | 457 |
| 8T-4223 |
WASHER
|
4 | 457 |
| 171-0188 |
VALVE GP
|
1 | 457 |
| 8T-4177 |
BOLT (L=90mm)
|
4 | 457 |
| 5C-7261 |
NUT
|
4 | 457 |
| 178-5885 |
PLATE AS
|
1 | 457 |
| 8T-4139 |
BOLT (L=30mm)
|
2 | 457 |
| 085-7356 |
FITTING
|
1 | 457 |
| 178-5900 |
HOSE AS (NOM 06, L=390mm)
|
1 | 457 |
| 8T-0075 |
CONNECTOR
|
1 | 457 |
| 6V-8724 |
ELBOW
|
1 | 457 |
| 6V-8781 |
TEE
|
1 | 457 |
| 6V-9836 |
TEE
|
1 | 457 |
| 4I-1780 |
HOSE AS (NOM 06, L=1450mm)
|
1 | 457 |
| 6V-8722 |
ELBOW
|
2 | 457 |
| 178-6027 |
HOSE AS (NOM 10, L=750mm)
|
1 | 457 |
| 178-6024 |
HOSE AS (NOM 10, L=600mm)
|
1 | 457 |
| 3J-1907 |
SEAL - O - RING (ID=11.89mm)
|
14 | 457 |
| 6V-8397 |
SEAL - O - RING (OD=12.83mm)
|
17 | 457 |
| 3K-0360 |
SEAL - O - RING (ID=16.36mm)
|
2 | 457 |
| 7J-9108 |
SEAL - O - RING (OD=19.28mm)
|
2 | 457 |
| 3E-2310 |
TEE
|
2 | 457 |
| 6V-3965 |
NIPPLE AS
|
2 | 457 |
| 6V-0852 |
CAP
|
2 | 457 |
| 6V-9850 |
ELBOW
|
1 | 457 |
| 6V-8774 |
TEE
|
1 | 457 |
| 153-8824 |
153-8824
|
1 | 592 |
| 171-0188 |
171-0188
|
1 | 592 |
| 178-5901 |
HOSE AS (NOM 06, L=3400mm)
|
1 | 593 |
| 7I-7439 |
GUARD (360cm)
|
1 | 593 |
| 6V-8936 |
REDUCER AS
|
1 | 593 |
| 178-6033 |
HOSE AS (NOM 06, L=2880mm)
|
1 | 593 |
| 7I-7439 |
GUARD (289cm)
|
1 | 593 |
| 6V-8636 |
CONNECTOR
|
5 | 593 |
| 178-5897 |
HOSE AS (NOM 06, L=2700mm)
|
1 | 593 |
