| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 1H-3244 |
LOCKWASHER
|
1 | 499 |
| 6V-8189 |
NUT (5/16-18 THD)
|
1 | 499 |
| 8T-4205 |
WASHER-HARD (7.2X14.5X2MM THK)
|
1 | 499 |
| 3E-5451 |
REGULATOR AS
|
1 | 499 |
| 9L-6770 |
CAP (DUST)
|
1 | 499 |
| 2K-4821 |
LOCKNUT
|
1 | 499 |
| 7F-7621 |
WASHER (0.635X1.25X0.09 IN THK)
|
1 | 499 |
| 8T-4224 |
WASHER-HARD (8.8X16X2MM THK)
|
1 | 499 |
| 3F-9556 |
LOCKWASHER
|
1 | 499 |
| 137-4937 |
ROTOR AS-ALTERNATOR
|
1 | 499 |
| 3E-5450 |
COVER
|
1 | 499 |
| 4B-2043 |
NUT (8-32 THD)
|
4 | 499 |
| 9B-7233 |
LOCKWASHER
|
4 | 499 |
| 3E-5448 |
CONNECTOR
|
1 | 499 |
| 3E-5446 |
CONNECTOR
|
1 | 499 |
| 3E-5457 |
DIODE AS
|
1 | 499 |
| 3E-5461 |
RECTIFIER AS
|
1 | 499 |
| 7N-9023 |
SCREW AS (8-32 X 26.9MM)
|
3 | 499 |
| 3E-5460 |
HOLDER AS-BRUSH
|
1 | 499 |
| 3E-5459 |
BRUSH AS-ALTERNATOR
|
2 | 499 |
| 3N-3718 |
SCREW AS
|
2 | 499 |
| 3E-5458 |
CAPACITOR AS-ALTERNATOR
|
1 | 499 |
| 8T-9367 |
BOLT (1/4-20X2 IN)
|
1 | 499 |
| 3E-5454 |
FAN-ALTERNATOR
|
1 | 499 |
| 3E-5455 |
HOUSING
|
1 | 499 |
| 5P-7807 |
BALL BEARING
|
1 | 499 |
| 3E-5447 |
PLATE
|
1 | 499 |
| 030-9612 |
SCREW-FORMING (10-24X.5 IN)
|
3 | 499 |
| 132-1230 |
KIT-ALTERNATOR TERMINAL
|
1 | 499 |
| 132-1224 |
FRAME AS-ALTERNATOR
|
1 | 499 |
| 5P-6920 |
BEARING-ROLLER
|
1 | 499 |
| 3E-5462 |
KIT-TERMINAL (INCLUDES NUTS, TERMINAL, LOCKWASHER AND INSULATOR)
|
1 | 499 |
| 126-2368 |
KIT-ALTERNATOR GUARD (INCLUDES GUARD, BOLT, SCREW AND LOCKWASHER)
|
1 | 499 |
| 132-1229 |
KIT-ALTERNATOR TERMINAL (INCLUDES BUSHING, WASHER, NUT AND TERMINAL)
|
1 | 499 |
| 4B-2047 |
NUT (10-24 THD)
|
1 | 499 |
| 8T-0328 |
WASHER-HARD (5.5X10X1MM THK)
|
1 | 499 |
| 8F-1434 |
LOCKWASHER
|
1 | 499 |

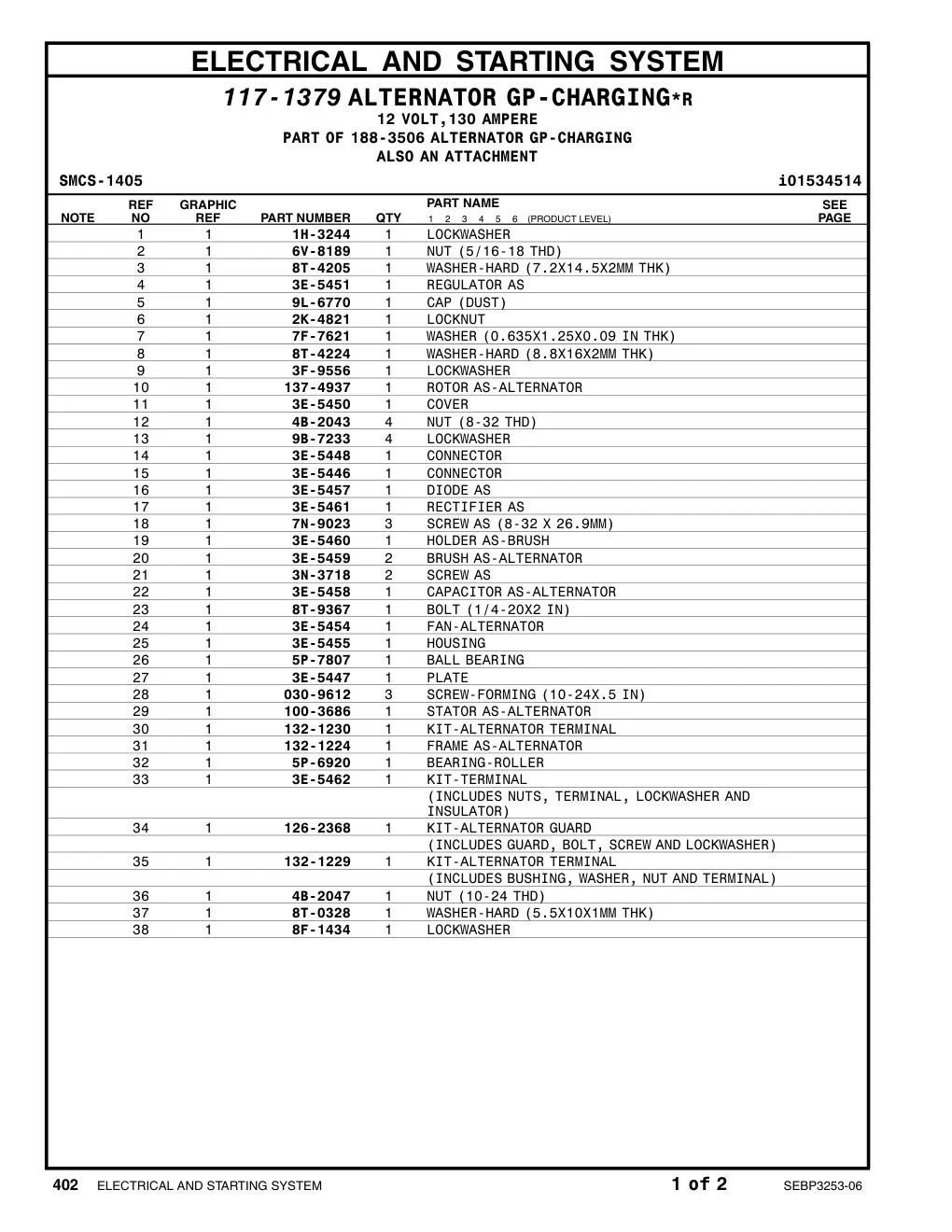

| 117-1379 |
ALTERNATOR GP-CHARGING
|
1 | 509 |
| 126-8240 |
SUPPORT-ALTERNATOR
|
1 | 509 |
| 131-2182 |
SUPPORT-ALTERNATOR
|
1 | 509 |
| 1H-2415 |
BOLT
|
1 | 509 |
| 6V-8188 |
NUT (1/2-13 THD)
|
2 | 509 |
| 7X-0338 |
BOLT (1/2-13X6 IN)
|
1 | 509 |
| 8T-4121 |
WASHER-HARD (11X21X2.5MM THK)
|
6 | 509 |
| 8T-4186 |
BOLT (M10X1.5X40MM)
|
2 | 509 |
| 8T-4195 |
BOLT (M10X1.5X30MM)
|
4 | 509 |
| 8T-4223 |
WASHER-HARD (13.5X25.5X3MM THK)
|
4 | 509 |
