| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 3N-5976 |
SWITCH (PHASE SELECTOR)
|
1 | 390 |
| 143-5089 |
HORN
|
1 | 390 |
| 169-4500 |
LAMP (MULTIPLE USE PANEL) (24V)
|
2 | 390 |
| 183-5648 |
VOLTMETER
|
1 | 390 |
| 183-5642 |
AMMETER
|
1 | 390 |
| 206-9511 |
CONTACT
|
2 | 390 |
| 212-9862 |
BUTTON (DISABLE ALARM)
|
1 | 390 |
| 214-4611 |
DOOR AS
|
1 | 390 |
| 214-5789 |
LAMP GP (YELLOW COMMON ALARM)
|
1 | 390 |
| 143-5084 |
BASE-LAMP
|
1 | 390 |
| 214-6827 |
CLIP
|
1 | 390 |
| 214-6828 |
HOLDER-LAMP
|
1 | 390 |
| 214-5790 |
LAMP GP (GREEN GENERATOR RUNNING)
|
1 | 390 |
| 214-6830 |
HOLDER-LAMP
|
1 | 390 |
| 214-5791 |
SWITCH AS (REMOTE START)
|
1 | 390 |
| 214-7397 |
FILM (HORN, BELL)
|
1 | 390 |
| 183-5652 |
METER-FREQUENCY
|
1 | 390 |
| 212-9835 |
GAUGE (PRESSURE) (OIL)
|
1 | 390 |
| 213-2527 |
GAUGE (TEMP) (ENGINE)
|
1 | 390 |
| 213-2528 |
GAUGE (VOLTS) (BATTERY)
|
1 | 390 |

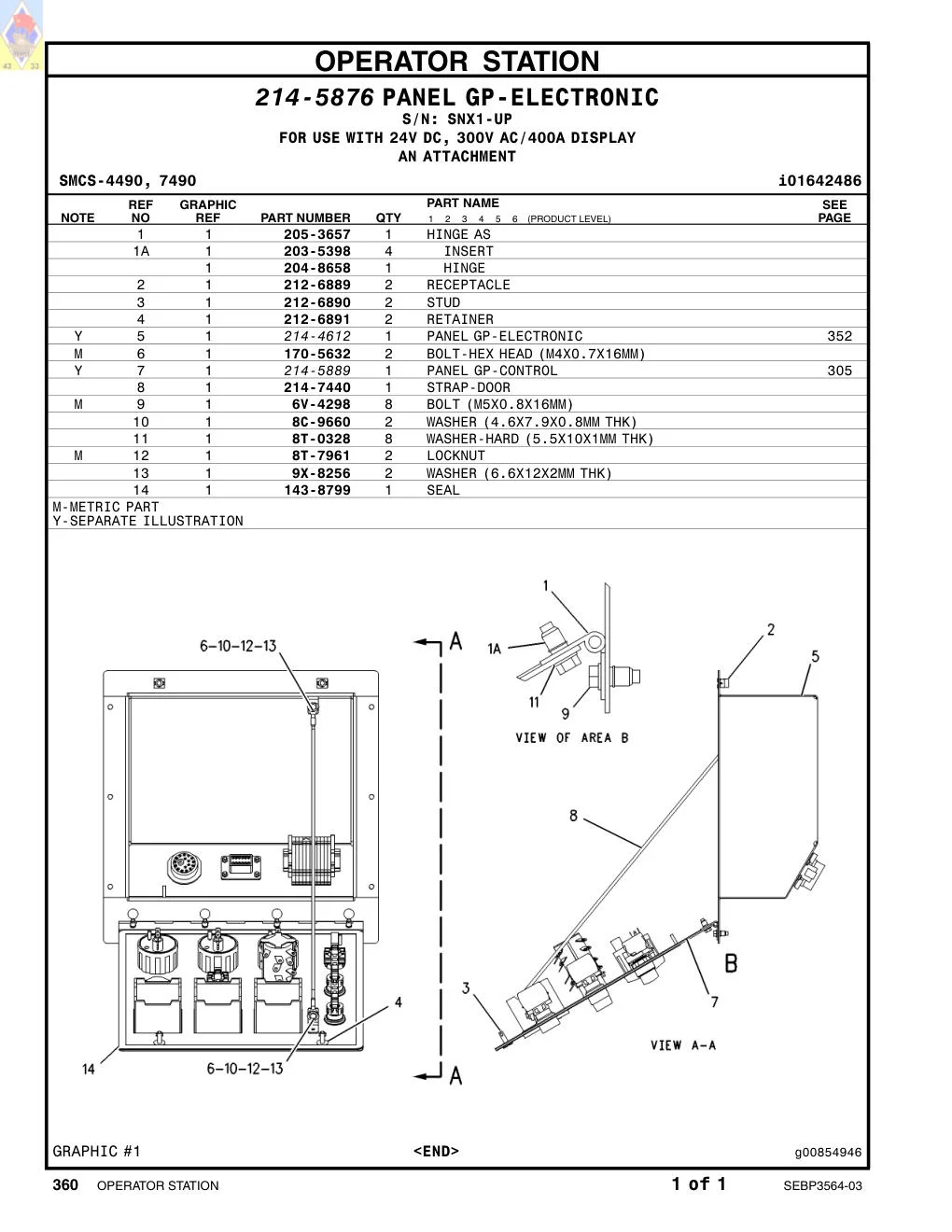

| 205-3657 |
HINGE AS
|
1 | 445 |
| 203-5398 |
INSERT
|
4 | 445 |
| 204-8658 |
HINGE
|
1 | 445 |
| 212-6889 |
RECEPTACLE
|
2 | 445 |
| 212-6890 |
STUD
|
2 | 445 |
| 212-6891 |
RETAINER
|
2 | 445 |
| 214-4612 |
PANEL GP-ELECTRONIC
|
1 | 445 |
| 170-5632 |
BOLT-HEX HEAD (M4X0.7X16MM)
|
2 | 445 |
| 214-7440 |
STRAP-DOOR
|
1 | 445 |
| 6V-4298 |
BOLT (M5X0.8X16MM)
|
8 | 445 |
| 8C-9660 |
WASHER (4.6X7.9X0.8MM THK)
|
2 | 445 |
| 8T-0328 |
WASHER-HARD (5.5X10X1MM THK)
|
8 | 445 |
| 8T-7961 |
LOCKNUT
|
2 | 445 |
| 9X-8256 |
WASHER (6.6X12X2MM THK)
|
2 | 445 |
| 143-8799 |
SEAL
|
1 | 445 |
